1. The Atomic Architecture of Stamina

(Silicon Carbide Ceramics)

To recognize why Silicon Carbide porcelains are so hard, we need to start with their atomic framework. Silicon carbide is a compound of silicon and carbon, arranged in a lattice where each atom is securely bound to four next-door neighbors in a tetrahedral geometry. This three-dimensional network of strong covalent bonds offers the material its hallmark homes: high firmness, high melting factor, and resistance to contortion. Unlike metals, which have totally free electrons to carry both power and warm, Silicon Carbide is a semiconductor. Its electrons are much more tightly bound, which means it can carry out power under specific problems however stays an excellent thermal conductor through vibrations of the crystal lattice, referred to as phonons

Among one of the most fascinating facets of Silicon Carbide porcelains is their polymorphism. The exact same basic chemical composition can crystallize right into several structures, called polytypes, which differ only in the piling series of their atomic layers. One of the most typical polytypes are 3C-SiC, 4H-SiC, and 6H-SiC, each with somewhat different digital and thermal buildings. This adaptability enables products scientists to choose the perfect polytype for a details application, whether it is for high-power electronic devices, high-temperature structural parts, or optical devices

An additional crucial function of Silicon Carbide ceramics is their strong covalent bonding, which results in a high elastic modulus. This means that the material is really stiff and resists flexing or stretching under tons. At the very same time, Silicon Carbide porcelains show impressive flexural toughness, frequently reaching a number of hundred megapascals. This mix of stiffness and stamina makes them optimal for applications where dimensional stability is crucial, such as in accuracy machinery or aerospace components

2. The Alchemy of Manufacturing

Developing a Silicon Carbide ceramic part is not as basic as baking clay in a kiln. The process starts with the manufacturing of high-purity Silicon Carbide powder, which can be synthesized via various methods, including the Acheson procedure, chemical vapor deposition, or laser-assisted synthesis. Each technique has its advantages and restrictions, but the objective is constantly to produce a powder with the best bit size, shape, and purity for the intended application

Once the powder is prepared, the next step is densification. This is where the actual challenge lies, as the strong covalent bonds in Silicon Carbide make it difficult for the particles to relocate and compact. To conquer this, suppliers make use of a range of methods, such as pressureless sintering, hot pushing, or trigger plasma sintering. In pressureless sintering, the powder is warmed in a furnace to a heat in the visibility of a sintering aid, which helps to decrease the activation energy for densification. Hot pressing, on the other hand, uses both heat and stress to the powder, enabling faster and more complete densification at lower temperature levels

Another ingenious method is making use of additive manufacturing, or 3D printing, to produce intricate Silicon Carbide ceramic components. Techniques like electronic light handling (DLP) and stereolithography enable the accurate control of the shape and size of the final product. In DLP, a photosensitive material having Silicon Carbide powder is cured by exposure to light, layer by layer, to accumulate the wanted shape. The published component is then sintered at heat to remove the material and densify the ceramic. This approach opens up new possibilities for the production of intricate parts that would be hard or impossible to make using traditional techniques

3. The Lots Of Faces of Silicon Carbide Ceramics

The special homes of Silicon Carbide porcelains make them appropriate for a wide variety of applications, from daily customer products to cutting-edge modern technologies. In the semiconductor industry, Silicon Carbide is made use of as a substratum material for high-power electronic gadgets, such as Schottky diodes and MOSFETs. These devices can run at higher voltages, temperatures, and regularities than conventional silicon-based gadgets, making them excellent for applications in electrical lorries, renewable energy systems, and smart grids

In the field of aerospace, Silicon Carbide ceramics are utilized in components that need to stand up to severe temperatures and mechanical anxiety. As an example, Silicon Carbide fiber-reinforced Silicon Carbide matrix composites (SiC/SiC CMCs) are being established for usage in jet engines and hypersonic lorries. These products can operate at temperature levels going beyond 1200 levels celsius, supplying significant weight cost savings and enhanced performance over typical nickel-based superalloys

Silicon Carbide ceramics likewise play an essential duty in the manufacturing of high-temperature heating systems and kilns. Their high thermal conductivity and resistance to thermal shock make them optimal for parts such as heating elements, crucibles, and heating system furniture. In the chemical handling sector, Silicon Carbide porcelains are used in equipment that should stand up to rust and wear, such as pumps, valves, and warmth exchanger tubes. Their chemical inertness and high firmness make them ideal for managing aggressive media, such as molten steels, acids, and antacid

4. The Future of Silicon Carbide Ceramics

As r & d in materials scientific research remain to advance, the future of Silicon Carbide porcelains looks appealing. New manufacturing strategies, such as additive production and nanotechnology, are opening up new possibilities for the production of facility and high-performance parts. At the very same time, the growing demand for energy-efficient and high-performance innovations is driving the adoption of Silicon Carbide ceramics in a vast array of markets

One area of particular passion is the development of Silicon Carbide ceramics for quantum computing and quantum picking up. Certain polytypes of Silicon Carbide host issues that can act as quantum bits, or qubits, which can be controlled at area temperature. This makes Silicon Carbide an encouraging system for the growth of scalable and useful quantum modern technologies

Another amazing growth is the use of Silicon Carbide ceramics in sustainable power systems. For instance, Silicon Carbide ceramics are being made use of in the production of high-efficiency solar cells and fuel cells, where their high thermal conductivity and chemical stability can boost the efficiency and longevity of these tools. As the globe continues to relocate towards a more sustainable future, Silicon Carbide porcelains are likely to play a progressively vital function

5. Verdict: A Material for the Ages

( Silicon Carbide Ceramics)

In conclusion, Silicon Carbide porcelains are an impressive class of materials that combine extreme solidity, high thermal conductivity, and chemical strength. Their one-of-a-kind residential properties make them ideal for a wide range of applications, from day-to-day consumer products to cutting-edge technologies. As r & d in products science remain to advancement, the future of Silicon Carbide porcelains looks promising, with new manufacturing methods and applications emerging constantly. Whether you are an engineer, a scientist, or merely someone who appreciates the marvels of modern-day products, Silicon Carbide ceramics make sure to remain to surprise and motivate

6. Provider

Advanced Ceramics founded on October 17, 2012, is a high-tech enterprise committed to the research and development, production, processing, sales and technical services of ceramic relative materials and products. Our products includes but not limited to Boron Carbide Ceramic Products, Boron Nitride Ceramic Products, Silicon Carbide Ceramic Products, Silicon Nitride Ceramic Products, Zirconium Dioxide Ceramic Products, etc. If you are interested, please feel free to contact us.
Tags: Silicon Carbide Ceramics, Silicon Carbide Ceramic, Silicon Carbide

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

1.1 Structure and Crystalline Phases of Alumina

( Alumina Ceramic Tubes)

Alumina (Al ₂ O FOUR) ceramic tubes are primarily fabricated from high-purity light weight aluminum oxide, with purity levels usually varying from 90% to 99.8%, relying on the intended application.

The dominant crystalline stage in completely thick, high-temperature sintered tubes is α-alumina (corundum), which displays a trigonal crystal structure and extraordinary thermodynamic security.

This phase shift from forerunner hydroxides (e.g., boehmite or gibbsite) to α-alumina occurs above 1100 ° C and leads to a thick, interlacing microstructure that offers impressive mechanical stamina and chemical resistance.

Greater purity qualities (≥ 99.5%) take full advantage of firmness, use resistance, and dielectric efficiency, while lower-purity formulations might integrate secondary stages like mullite or lustrous grain border stages to minimize price or dressmaker thermal growth.

The ability to control grain size, porosity, and stage make-up during processing allows designers to tweak alumina tubes for certain functional needs throughout varied industrial domain names.

1.2 Mechanical, Thermal, and Electric Properties

Alumina ceramic tubes exhibit an unique mix of physical residential properties that make them essential sought after engineering environments.

With a Vickers solidity exceeding 1500 HV, they are highly immune to abrasion and erosion, outshining most metals and polymers in wear-prone systems.

Their compressive stamina can get to 2000 MPa, allowing architectural use under high mechanical loads, while flexural toughness typically ranges from 300 to 500 MPa, depending upon density and surface coating.

Thermally, alumina preserves security as much as 1700 ° C in oxidizing ambiences, with a reduced coefficient of thermal development (~ 8 ppm/K), contributing to excellent thermal shock resistance when effectively developed.

Although its thermal conductivity (~ 30 W/(m · K)) is moderate contrasted to metals or aluminum nitride, it is sufficient for many high-temperature applications where electric insulation and architectural integrity are focused on.

Electrically, alumina is a superior insulator with quantity resistivity > 10 ¹⁴ Ω · cm and high dielectric strength (> 15 kV/mm), making it excellent for electrical feedthroughs, sensing unit real estates, and high-voltage insulation.

( Alumina Ceramic Tubes)

2. Production Processes and Dimensional Control

2.1 Forming and Developing Techniques

The production of alumina ceramic tubes involves advanced forming approaches customized to accomplish precise dimensions, wall thickness uniformity, and surface area quality.

Typical methods include extrusion, isostatic pressing, and slip casting, each fit to various size ranges and performance needs.

Extrusion is extensively made use of for long, straight tubes with constant cross-sections, where a plasticized alumina paste is required through a die and cut to length prior to drying out and sintering.

For high-precision or thin-walled tubes, cool isostatic pushing (CIP) applies uniform pressure from all directions to small eco-friendly bodies, lessening distortion and boosting thickness homogeneity.

Slip casting, including the deposition of a colloidal alumina suspension (slip) onto a permeable plaster mold and mildew, is excellent for complex or large-diameter geometries with variable wall density.

After developing, tubes undertake careful drying out to stop splitting, adhered to by binder fatigue and high-temperature sintering (1500– 1650 ° C )to attain full densification and dimensional security.

2.2 Completing and Quality Control

Post-sintering operations such as centerless grinding, splashing, and brightening are utilized to accomplish tight tolerances, smooth surface coatings, and specific internal and outer sizes.

Resistances as limited as ± 0.01 mm are achievable for important applications in semiconductor handling or analytical instrumentation.

Surface roughness can be reduced to Ra < 0.1 µm, reducing fragment capturing and enhancing compatibility with ultra-high vacuum (UHV) or cleanroom environments.

Non-destructive testing methods– including ultrasonic assessment, X-ray radiography, and dye penetrant screening– guarantee structural stability and lack of splits or voids.

Dimensional assessment utilizing coordinate determining machines (CMM) or laser scanning verifies conformity with design specs, particularly for customized or high-volume production runs.

3. Practical Performance in Harsh Environments

3.1 Resistance to Thermal and Chemical Degradation

One of the most engaging benefits of alumina ceramic tubes is their ability to hold up against severe thermal and chemical problems where metals and polymers fail.

They stay dimensionally secure and mechanically robust in constant solution at temperature levels over 1500 ° C, making them appropriate for furnace liners, thermocouple security sheaths, and glowing heating system tubes.

Their inertness to molten metals (e.g., aluminum, zinc, and non-ferrous alloys), liquified salts, and several acids (other than hydrofluoric and hot phosphoric acid) allows use in metallurgical and chemical handling devices.

In oxidizing and decreasing ambiences, alumina does not deteriorate or catalyze undesirable responses, maintaining procedure purity in semiconductor and glass production.

This chemical inertness additionally protects against contamination in high-purity liquid taking care of systems, including those made use of in pharmaceutical and food handling markets.

3.2 Electrical Insulation and Plasma Resistance

In electrical and plasma settings, alumina tubes act as insulating obstacles that preserve circuit honesty under high voltage and raised temperature.

They are used in high-intensity discharge (HID) lights, where they include ionized gases at temperature levels surpassing 1000 ° C while holding up against electric possibilities of numerous kilovolts.

In plasma etching and deposition systems, alumina tubes work as dielectric windows or gas circulation elements, withstanding ion bombardment and thermal cycling without splitting or outgassing.

Their low dielectric loss and high arc resistance avoid electric monitoring and malfunction, making sure lengthy service life in switchgear and power transmission parts.

These homes are crucial in preserving process security and equipment integrity in advanced production and energy systems.

4. Industrial and Arising Applications

4.1 High-Temperature and Industrial Handling Solutions

Alumina ceramic tubes are indispensable to a vast array of industrial procedures that demand resilience under severe conditions.

In thermal processing, they serve as protective sheaths for thermocouples and heating elements in kilns, heating systems, and warmth treatment equipment, shielding delicate parts from destructive ambiences and mechanical wear.

In fluid handling, they transport aggressive chemicals, slurries, and high-temperature gases in petrochemical refineries, desalination plants, and waste incineration systems.

Their resistance to thermal shock enables quick home heating and cooling cycles without failing, an essential benefit in cyclic commercial operations.

In glass production, alumina tubes assist liquified glass circulations and assistance developing equipment, resisting erosion from viscous, high-temperature thaws.

4.2 Advanced Technologies and Future Integration

Beyond conventional industrial uses, alumina tubes are finding brand-new duties in advanced innovations.

In semiconductor fabrication, ultra-pure alumina tubes are made use of in chemical vapor deposition (CVD) reactors and ion implantation systems, where bit generation and metal contamination should be minimized.

In medical gadgets, biocompatible alumina tubes serve as protecting components in medical devices, dental implants, and analysis sensing units.

Research study is discovering functionalized alumina tubes with ingrained sensing units or conductive traces for clever architectural surveillance in aerospace and energy systems.

Additive manufacturing (3D printing) of alumina is emerging as a method to produce complicated tube geometries with internal channels or graded structures, making it possible for next-generation warmth exchangers and microreactors.

As sectors push toward greater effectiveness, cleaner procedures, and greater dependability, alumina ceramic tubes remain to evolve as allowing parts in the infrastructure of modern innovation.

In recap, alumina ceramic tubes stand for a mature yet dynamically advancing class of crafted products, incorporating outstanding thermal, mechanical, and electric efficiency in a solitary not natural conduit.

Their flexibility throughout extreme environments ensures their ongoing relevance in both established commercial systems and arising state-of-the-art applications.

5. Vendor

Advanced Ceramics founded on October 17, 2012, is a high-tech enterprise committed to the research and development, production, processing, sales and technical services of ceramic relative materials and products. Our products includes but not limited to Boron Carbide Ceramic Products, Boron Nitride Ceramic Products, Silicon Carbide Ceramic Products, Silicon Nitride Ceramic Products, Zirconium Dioxide Ceramic Products, etc. If you are interested, please feel free to contact us.
Tags: Alumina Ceramic Tubes, alumina tubes sizes, alumina tube

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

1.1 Amorphous Network and Thermal Security

(Quartz Crucibles)

Quartz crucibles are high-temperature containers produced from merged silica, a synthetic type of silicon dioxide (SiO TWO) derived from the melting of natural quartz crystals at temperature levels exceeding 1700 ° C.

Unlike crystalline quartz, fused silica possesses an amorphous three-dimensional network of corner-sharing SiO ₄ tetrahedra, which imparts outstanding thermal shock resistance and dimensional security under quick temperature adjustments.

This disordered atomic framework prevents bosom along crystallographic aircrafts, making fused silica much less susceptible to cracking during thermal cycling contrasted to polycrystalline ceramics.

The material displays a low coefficient of thermal growth (~ 0.5 × 10 ⁻⁶/ K), among the most affordable among engineering materials, enabling it to stand up to severe thermal slopes without fracturing– a crucial building in semiconductor and solar battery manufacturing.

Merged silica also maintains outstanding chemical inertness versus a lot of acids, molten metals, and slags, although it can be gradually etched by hydrofluoric acid and hot phosphoric acid.

Its high softening point (~ 1600– 1730 ° C, depending upon pureness and OH material) enables continual procedure at raised temperature levels required for crystal development and steel refining procedures.

1.2 Pureness Grading and Micronutrient Control

The performance of quartz crucibles is extremely based on chemical pureness, specifically the concentration of metallic contaminations such as iron, sodium, potassium, aluminum, and titanium.

Even trace amounts (components per million degree) of these contaminants can move into liquified silicon during crystal development, weakening the electrical homes of the resulting semiconductor material.

High-purity qualities utilized in electronic devices manufacturing typically contain over 99.95% SiO ₂, with alkali steel oxides restricted to much less than 10 ppm and shift metals listed below 1 ppm.

Pollutants stem from raw quartz feedstock or processing tools and are lessened with careful option of mineral resources and filtration strategies like acid leaching and flotation.

In addition, the hydroxyl (OH) material in fused silica affects its thermomechanical habits; high-OH kinds provide better UV transmission but lower thermal security, while low-OH versions are favored for high-temperature applications because of reduced bubble formation.

( Quartz Crucibles)

2. Production Refine and Microstructural Design

2.1 Electrofusion and Creating Methods

Quartz crucibles are largely produced via electrofusion, a procedure in which high-purity quartz powder is fed into a revolving graphite mold and mildew within an electrical arc furnace.

An electric arc produced between carbon electrodes melts the quartz fragments, which strengthen layer by layer to develop a smooth, thick crucible form.

This approach creates a fine-grained, uniform microstructure with minimal bubbles and striae, necessary for consistent warmth circulation and mechanical stability.

Different techniques such as plasma combination and flame blend are used for specialized applications requiring ultra-low contamination or details wall thickness profiles.

After casting, the crucibles undertake controlled air conditioning (annealing) to alleviate internal anxieties and stop spontaneous fracturing during solution.

Surface area finishing, including grinding and polishing, guarantees dimensional precision and decreases nucleation websites for undesirable condensation throughout usage.

2.2 Crystalline Layer Design and Opacity Control

A specifying feature of modern quartz crucibles, particularly those used in directional solidification of multicrystalline silicon, is the crafted inner layer framework.

Throughout manufacturing, the inner surface area is commonly dealt with to promote the formation of a slim, controlled layer of cristobalite– a high-temperature polymorph of SiO ₂– upon initial home heating.

This cristobalite layer functions as a diffusion barrier, reducing straight interaction in between liquified silicon and the underlying merged silica, therefore decreasing oxygen and metal contamination.

Moreover, the visibility of this crystalline phase improves opacity, boosting infrared radiation absorption and advertising even more uniform temperature distribution within the melt.

Crucible developers very carefully stabilize the density and continuity of this layer to avoid spalling or cracking because of quantity changes during stage changes.

3. Functional Efficiency in High-Temperature Applications

3.1 Duty in Silicon Crystal Growth Processes

Quartz crucibles are vital in the production of monocrystalline and multicrystalline silicon, serving as the primary container for molten silicon in Czochralski (CZ) and directional solidification systems (DS).

In the CZ procedure, a seed crystal is dipped into liquified silicon kept in a quartz crucible and slowly pulled up while turning, allowing single-crystal ingots to develop.

Although the crucible does not directly call the expanding crystal, communications in between liquified silicon and SiO two walls cause oxygen dissolution into the thaw, which can impact provider lifetime and mechanical toughness in ended up wafers.

In DS procedures for photovoltaic-grade silicon, massive quartz crucibles enable the controlled cooling of thousands of kilograms of molten silicon into block-shaped ingots.

Right here, coatings such as silicon nitride (Si six N ₄) are put on the inner surface to stop attachment and help with simple release of the solidified silicon block after cooling down.

3.2 Destruction Devices and Service Life Limitations

Regardless of their robustness, quartz crucibles degrade during duplicated high-temperature cycles as a result of a number of related devices.

Thick flow or contortion happens at prolonged direct exposure above 1400 ° C, leading to wall thinning and loss of geometric honesty.

Re-crystallization of fused silica right into cristobalite creates inner stress and anxieties because of quantity growth, potentially triggering fractures or spallation that contaminate the melt.

Chemical disintegration develops from reduction reactions in between liquified silicon and SiO TWO: SiO ₂ + Si → 2SiO(g), producing volatile silicon monoxide that escapes and deteriorates the crucible wall surface.

Bubble formation, driven by caught gases or OH teams, further jeopardizes architectural toughness and thermal conductivity.

These deterioration pathways limit the number of reuse cycles and necessitate specific procedure control to maximize crucible life-span and item yield.

4. Emerging Developments and Technical Adaptations

4.1 Coatings and Compound Alterations

To boost efficiency and sturdiness, advanced quartz crucibles include practical finishings and composite frameworks.

Silicon-based anti-sticking layers and drugged silica coverings boost release qualities and lower oxygen outgassing throughout melting.

Some producers integrate zirconia (ZrO TWO) fragments right into the crucible wall to increase mechanical stamina and resistance to devitrification.

Research is recurring into completely clear or gradient-structured crucibles designed to optimize convected heat transfer in next-generation solar heater designs.

4.2 Sustainability and Recycling Challenges

With raising need from the semiconductor and photovoltaic sectors, lasting use quartz crucibles has actually come to be a top priority.

Spent crucibles infected with silicon residue are tough to recycle because of cross-contamination dangers, causing considerable waste generation.

Efforts focus on establishing recyclable crucible liners, enhanced cleansing methods, and closed-loop recycling systems to recover high-purity silica for additional applications.

As tool performances demand ever-higher material pureness, the function of quartz crucibles will certainly continue to develop with development in products science and procedure engineering.

In summary, quartz crucibles represent a crucial user interface in between basic materials and high-performance digital products.

Their distinct combination of purity, thermal durability, and structural style allows the construction of silicon-based modern technologies that power contemporary computing and renewable energy systems.

5. Provider

Advanced Ceramics founded on October 17, 2012, is a high-tech enterprise committed to the research and development, production, processing, sales and technical services of ceramic relative materials such as Alumina Ceramic Balls. Our products includes but not limited to Boron Carbide Ceramic Products, Boron Nitride Ceramic Products, Silicon Carbide Ceramic Products, Silicon Nitride Ceramic Products, Zirconium Dioxide Ceramic Products, etc. If you are interested, please feel free to contact us.(nanotrun@yahoo.com)
Tags: quartz crucibles,fused quartz crucible,quartz crucible for silicon

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

1.1 Crystal Framework and Chemical Security

(Aluminum Nitride Ceramic Substrates)

Light weight aluminum nitride (AlN) is a large bandgap semiconductor ceramic with a hexagonal wurtzite crystal framework, made up of alternating layers of aluminum and nitrogen atoms bound with strong covalent interactions.

This robust atomic arrangement grants AlN with outstanding thermal security, keeping structural integrity approximately 2200 ° C in inert ambiences and standing up to decomposition under extreme thermal biking.

Unlike alumina (Al ₂ O ₃), AlN is chemically inert to thaw steels and lots of responsive gases, making it appropriate for rough settings such as semiconductor handling chambers and high-temperature furnaces.

Its high resistance to oxidation– developing only a thin protective Al two O six layer at surface upon direct exposure to air– guarantees lasting integrity without significant degradation of mass buildings.

Additionally, AlN shows exceptional electrical insulation with a resistivity exceeding 10 ¹⁴ Ω · cm and a dielectric strength above 30 kV/mm, essential for high-voltage applications.

1.2 Thermal Conductivity and Digital Characteristics

The most defining attribute of light weight aluminum nitride is its outstanding thermal conductivity, typically ranging from 140 to 180 W/(m · K )for commercial-grade substratums– over five times greater than that of alumina (≈ 30 W/(m · K)).

This performance stems from the low atomic mass of nitrogen and light weight aluminum, integrated with solid bonding and very little point flaws, which enable effective phonon transportation through the lattice.

However, oxygen contaminations are especially destructive; also trace amounts (above 100 ppm) replacement for nitrogen websites, creating aluminum openings and spreading phonons, therefore dramatically decreasing thermal conductivity.

High-purity AlN powders synthesized using carbothermal decrease or direct nitridation are important to attain optimal warm dissipation.

In spite of being an electrical insulator, AlN’s piezoelectric and pyroelectric residential or commercial properties make it valuable in sensors and acoustic wave gadgets, while its vast bandgap (~ 6.2 eV) supports procedure in high-power and high-frequency electronic systems.

2. Fabrication Processes and Production Challenges

( Aluminum Nitride Ceramic Substrates)

2.1 Powder Synthesis and Sintering Strategies

Making high-performance AlN substratums starts with the synthesis of ultra-fine, high-purity powder, frequently attained through responses such as Al Two O FOUR + 3C + N ₂ → 2AlN + 3CO (carbothermal decrease) or direct nitridation of aluminum metal: 2Al + N ₂ → 2AlN.

The resulting powder should be very carefully crushed and doped with sintering help like Y TWO O FIVE, CaO, or uncommon planet oxides to promote densification at temperatures in between 1700 ° C and 1900 ° C under nitrogen atmosphere.

These additives form short-term liquid stages that boost grain boundary diffusion, allowing complete densification (> 99% theoretical density) while minimizing oxygen contamination.

Post-sintering annealing in carbon-rich atmospheres can even more reduce oxygen material by removing intergranular oxides, thus restoring peak thermal conductivity.

Attaining consistent microstructure with regulated grain size is crucial to balance mechanical toughness, thermal efficiency, and manufacturability.

2.2 Substrate Shaping and Metallization

As soon as sintered, AlN ceramics are precision-ground and lapped to meet tight dimensional tolerances required for electronic packaging, commonly to micrometer-level flatness.

Through-hole boring, laser cutting, and surface pattern allow integration into multilayer packages and hybrid circuits.

A critical step in substrate manufacture is metallization– the application of conductive layers (typically tungsten, molybdenum, or copper) by means of processes such as thick-film printing, thin-film sputtering, or straight bonding of copper (DBC).

For DBC, copper foils are bound to AlN surface areas at raised temperature levels in a regulated ambience, developing a solid user interface appropriate for high-current applications.

Alternative strategies like active steel brazing (AMB) use titanium-containing solders to boost bond and thermal exhaustion resistance, specifically under repeated power biking.

Appropriate interfacial design makes certain low thermal resistance and high mechanical reliability in operating devices.

3. Efficiency Advantages in Electronic Solution

3.1 Thermal Management in Power Electronics

AlN substratums master managing warmth created by high-power semiconductor devices such as IGBTs, MOSFETs, and RF amplifiers utilized in electrical automobiles, renewable resource inverters, and telecommunications framework.

Effective warmth removal stops local hotspots, minimizes thermal anxiety, and extends gadget life time by mitigating electromigration and delamination risks.

Compared to traditional Al two O six substrates, AlN enables smaller sized bundle dimensions and greater power densities as a result of its superior thermal conductivity, permitting developers to press efficiency limits without jeopardizing integrity.

In LED lights and laser diodes, where joint temperature directly impacts efficiency and color stability, AlN substratums substantially boost luminous result and operational life expectancy.

Its coefficient of thermal development (CTE ≈ 4.5 ppm/K) likewise carefully matches that of silicon (3.5– 4 ppm/K) and gallium nitride (GaN, ~ 5.6 ppm/K), minimizing thermo-mechanical tension during thermal cycling.

3.2 Electric and Mechanical Reliability

Beyond thermal performance, AlN uses reduced dielectric loss (tan δ < 0.0005) and stable permittivity (εᵣ ≈ 8.9) across a broad regularity variety, making it ideal for high-frequency microwave and millimeter-wave circuits.

Its hermetic nature prevents moisture ingress, removing rust dangers in damp environments– a crucial advantage over organic substrates.

Mechanically, AlN has high flexural stamina (300– 400 MPa) and firmness (HV ≈ 1200), guaranteeing toughness throughout handling, assembly, and area operation.

These characteristics jointly contribute to boosted system reliability, lowered failing rates, and reduced complete price of ownership in mission-critical applications.

4. Applications and Future Technological Frontiers

4.1 Industrial, Automotive, and Defense Systems

AlN ceramic substrates are currently conventional in innovative power modules for industrial motor drives, wind and solar inverters, and onboard battery chargers in electrical and hybrid lorries.

In aerospace and protection, they support radar systems, digital warfare systems, and satellite interactions, where performance under extreme conditions is non-negotiable.

Clinical imaging tools, consisting of X-ray generators and MRI systems, additionally benefit from AlN’s radiation resistance and signal stability.

As electrification fads increase across transportation and power sectors, demand for AlN substratums remains to expand, driven by the need for portable, efficient, and trusted power electronics.

4.2 Arising Integration and Sustainable Advancement

Future developments concentrate on integrating AlN right into three-dimensional product packaging styles, embedded passive elements, and heterogeneous integration platforms incorporating Si, SiC, and GaN gadgets.

Research study into nanostructured AlN films and single-crystal substrates aims to more boost thermal conductivity toward theoretical limits (> 300 W/(m · K)) for next-generation quantum and optoelectronic devices.

Efforts to lower manufacturing expenses via scalable powder synthesis, additive production of intricate ceramic structures, and recycling of scrap AlN are acquiring energy to improve sustainability.

In addition, modeling devices making use of limited component analysis (FEA) and machine learning are being employed to enhance substrate style for certain thermal and electric lots.

Finally, light weight aluminum nitride ceramic substratums represent a keystone innovation in modern electronics, distinctively linking the void between electric insulation and outstanding thermal transmission.

Their role in making it possible for high-efficiency, high-reliability power systems highlights their tactical significance in the continuous development of electronic and power technologies.

5. Distributor

Advanced Ceramics founded on October 17, 2012, is a high-tech enterprise committed to the research and development, production, processing, sales and technical services of ceramic relative materials and products. Our products includes but not limited to Boron Carbide Ceramic Products, Boron Nitride Ceramic Products, Silicon Carbide Ceramic Products, Silicon Nitride Ceramic Products, Zirconium Dioxide Ceramic Products, etc. If you are interested, please feel free to contact us.
Tags: Aluminum Nitride Ceramic Substrates, aluminum nitride ceramic, aln aluminium nitride

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

1.1 Structure and Crystallographic Stability of Alumina

(Alumina Ceramic Nozzles)

Alumina (Al Two O THREE), specifically in its alpha phase, is a totally oxidized ceramic with a corundum-type hexagonal close-packed structure, offering extraordinary thermal security, chemical inertness, and mechanical strength at raised temperatures.

High-purity alumina (normally 95– 99.9% Al ₂ O TWO) is favored for nozzle applications as a result of its very little contamination web content, which lowers grain limit weakening and improves resistance to thermal and chemical deterioration.

The microstructure, containing penalty, equiaxed grains, is crafted throughout sintering to minimize porosity and make the most of thickness, straight affecting the nozzle’s erosion resistance and architectural stability under high-velocity liquid flow.

Additives such as MgO are commonly introduced in trace amounts to prevent irregular grain development throughout sintering, guaranteeing a consistent microstructure that supports lasting dependability.

1.2 Mechanical and Thermal Qualities Relevant to Nozzle Efficiency

Alumina ceramics show a Vickers hardness going beyond 1800 HV, making them highly resistant to unpleasant wear from particulate-laden fluids, an essential quality in applications such as sandblasting and rough waterjet cutting.

With a flexural strength of 300– 500 MPa and a compressive toughness over 2 GPa, alumina nozzles maintain dimensional stability under high-pressure operation, generally varying from 100 to 400 MPa in commercial systems.

Thermally, alumina preserves its mechanical properties approximately 1600 ° C, with a low thermal development coefficient (~ 8 × 10 ⁻⁶/ K) that offers excellent resistance to thermal shock– essential when revealed to quick temperature level variations during start-up or shutdown cycles.

Its thermal conductivity (~ 30 W/m · K) is sufficient to dissipate localized heat without inducing thermal gradients that can bring about splitting, balancing insulation and heat management requirements.

2. Manufacturing Processes and Geometric Precision

2.1 Shaping and Sintering Methods for Nozzle Construction

The manufacturing of alumina ceramic nozzles begins with high-purity alumina powder, which is processed right into an eco-friendly body utilizing approaches such as cool isostatic pressing (CIP), shot molding, or extrusion, relying on the preferred geometry and set size.

( Alumina Ceramic Nozzles)

Cold isostatic pressing applies uniform stress from all instructions, yielding a homogeneous thickness circulation important for lessening flaws throughout sintering.

Shot molding is utilized for complex nozzle forms with internal tapers and great orifices, allowing high dimensional accuracy and reproducibility in automation.

After shaping, the green compacts undertake a two-stage thermal treatment: debinding to remove natural binders and sintering at temperatures in between 1500 ° C and 1650 ° C to attain near-theoretical density with solid-state diffusion.

Precise control of sintering atmosphere and heating/cooling rates is vital to protect against warping, cracking, or grain coarsening that could jeopardize nozzle efficiency.

2.2 Machining, Polishing, and Quality Control

Post-sintering, alumina nozzles frequently call for precision machining to achieve tight tolerances, especially in the orifice region where circulation dynamics are most conscious surface finish and geometry.

Diamond grinding and splashing are used to improve interior and external surfaces, achieving surface roughness values below 0.1 µm, which lowers flow resistance and prevents bit buildup.

The orifice, normally ranging from 0.3 to 3.0 mm in size, should be without micro-cracks and chamfers to guarantee laminar circulation and regular spray patterns.

Non-destructive testing techniques such as optical microscopy, X-ray evaluation, and stress cycling tests are utilized to verify structural honesty and performance consistency before release.

Custom-made geometries, including convergent-divergent (de Laval) profiles for supersonic circulation or multi-hole arrays for fan spray patterns, are significantly made utilizing sophisticated tooling and computer-aided design (CAD)-driven production.

3. Functional Advantages Over Different Nozzle Products

3.1 Superior Erosion and Corrosion Resistance

Compared to metal (e.g., tungsten carbide, stainless steel) or polymer nozzles, alumina exhibits far greater resistance to unpleasant wear, especially in atmospheres including silica sand, garnet, or various other difficult abrasives used in surface area preparation and cutting.

Metal nozzles deteriorate rapidly as a result of micro-fracturing and plastic deformation, needing frequent substitute, whereas alumina nozzles can last 3– 5 times much longer, substantially reducing downtime and operational prices.

In addition, alumina is inert to a lot of acids, alkalis, and solvents, making it suitable for chemical splashing, etching, and cleaning processes where metallic parts would corrode or contaminate the fluid.

This chemical stability is specifically valuable in semiconductor production, pharmaceutical processing, and food-grade applications needing high purity.

3.2 Thermal and Electrical Insulation Characteristic

Alumina’s high electric resistivity (> 10 ¹⁴ Ω · centimeters) makes it suitable for use in electrostatic spray coating systems, where it avoids cost leakage and makes sure consistent paint atomization.

Its thermal insulation capability allows secure procedure in high-temperature spraying settings, such as fire splashing or thermal cleaning, without heat transfer to surrounding parts.

Unlike steels, alumina does not catalyze undesirable chemical reactions in responsive liquid streams, protecting the stability of delicate formulations.

4. Industrial Applications and Technological Influence

4.1 Functions in Abrasive Jet Machining and Surface Area Treatment

Alumina ceramic nozzles are essential in abrasive blowing up systems for rust removal, paint removing, and surface texturing in vehicle, aerospace, and construction industries.

Their capability to preserve a consistent orifice size over expanded use guarantees uniform rough velocity and effect angle, straight affecting surface coating high quality and process repeatability.

In rough waterjet cutting, alumina focusing tubes lead the high-pressure water-abrasive mixture, withstanding erosive forces that would quickly degrade softer materials.

4.2 Usage in Additive Production, Spray Finishing, and Fluid Control

In thermal spray systems, such as plasma and flame spraying, alumina nozzles straight high-temperature gas circulations and liquified particles onto substrates, gaining from their thermal shock resistance and dimensional security.

They are likewise employed in accuracy spray nozzles for farming chemicals, inkjet systems, and fuel atomization, where wear resistance guarantees lasting application precision.

In 3D printing, particularly in binder jetting and product extrusion, alumina nozzles deliver great powders or thick pastes with marginal clogging or use.

Arising applications consist of microfluidic systems and lab-on-a-chip tools, where miniaturized alumina parts provide durability and biocompatibility.

In summary, alumina ceramic nozzles stand for an important junction of materials science and industrial engineering.

Their exceptional combination of firmness, thermal stability, and chemical resistance makes it possible for reputable efficiency in some of one of the most requiring fluid handling atmospheres.

As commercial processes press toward greater stress, finer resistances, and much longer service periods, alumina porcelains continue to establish the requirement for sturdy, high-precision flow control elements.

5. Vendor

Alumina Technology Co., Ltd focus on the research and development, production and sales of aluminum oxide powder, aluminum oxide products, aluminum oxide crucible, etc., serving the electronics, ceramics, chemical and other industries. Since its establishment in 2005, the company has been committed to providing customers with the best products and services. If you are looking for high quality alumina al203, please feel free to contact us. (nanotrun@yahoo.com)
Tags: Alumina Ceramic Nozzles, Ceramic Nozzles, Alumina Nozzles

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

1.1 Cubic and Hexagonal Polytypes: From 3C to 6H and Beyond

(Silicon Carbide Ceramics)

Silicon carbide (SiC) is a covalently bonded ceramic composed of silicon and carbon atoms set up in a tetrahedral sychronisation, developing among the most complex systems of polytypism in products scientific research.

Unlike the majority of porcelains with a single secure crystal structure, SiC exists in over 250 known polytypes– distinct stacking sequences of close-packed Si-C bilayers along the c-axis– ranging from cubic 3C-SiC (also referred to as β-SiC) to hexagonal 6H-SiC and rhombohedral 15R-SiC.

One of the most typical polytypes made use of in design applications are 3C (cubic), 4H, and 6H (both hexagonal), each showing slightly different electronic band frameworks and thermal conductivities.

3C-SiC, with its zinc blende structure, has the narrowest bandgap (~ 2.3 eV) and is normally expanded on silicon substrates for semiconductor tools, while 4H-SiC provides remarkable electron mobility and is preferred for high-power electronic devices.

The solid covalent bonding and directional nature of the Si– C bond give remarkable firmness, thermal security, and resistance to creep and chemical strike, making SiC suitable for extreme environment applications.

1.2 Problems, Doping, and Digital Residence

Despite its architectural intricacy, SiC can be doped to accomplish both n-type and p-type conductivity, allowing its usage in semiconductor gadgets.

Nitrogen and phosphorus work as contributor pollutants, introducing electrons into the conduction band, while light weight aluminum and boron act as acceptors, developing holes in the valence band.

Nevertheless, p-type doping efficiency is limited by high activation energies, particularly in 4H-SiC, which poses challenges for bipolar device style.

Native defects such as screw misplacements, micropipes, and stacking mistakes can break down device efficiency by serving as recombination centers or leakage courses, demanding high-quality single-crystal growth for digital applications.

The broad bandgap (2.3– 3.3 eV relying on polytype), high breakdown electric field (~ 3 MV/cm), and excellent thermal conductivity (~ 3– 4 W/m · K for 4H-SiC) make SiC much superior to silicon in high-temperature, high-voltage, and high-frequency power electronics.

2. Handling and Microstructural Engineering

( Silicon Carbide Ceramics)

2.1 Sintering and Densification Methods

Silicon carbide is naturally hard to densify due to its solid covalent bonding and reduced self-diffusion coefficients, requiring sophisticated handling methods to attain complete thickness without ingredients or with minimal sintering aids.

Pressureless sintering of submicron SiC powders is possible with the enhancement of boron and carbon, which advertise densification by removing oxide layers and enhancing solid-state diffusion.

Warm pressing applies uniaxial pressure throughout home heating, making it possible for complete densification at reduced temperature levels (~ 1800– 2000 ° C )and creating fine-grained, high-strength components appropriate for reducing devices and wear parts.

For huge or intricate forms, reaction bonding is utilized, where permeable carbon preforms are infiltrated with molten silicon at ~ 1600 ° C, forming β-SiC sitting with marginal shrinking.

Nevertheless, residual totally free silicon (~ 5– 10%) stays in the microstructure, restricting high-temperature performance and oxidation resistance above 1300 ° C.

2.2 Additive Production and Near-Net-Shape Fabrication

Current developments in additive manufacturing (AM), especially binder jetting and stereolithography making use of SiC powders or preceramic polymers, enable the manufacture of complex geometries formerly unattainable with traditional methods.

In polymer-derived ceramic (PDC) paths, fluid SiC forerunners are shaped through 3D printing and after that pyrolyzed at heats to yield amorphous or nanocrystalline SiC, frequently needing more densification.

These techniques decrease machining expenses and product waste, making SiC extra available for aerospace, nuclear, and warm exchanger applications where complex styles boost performance.

Post-processing steps such as chemical vapor infiltration (CVI) or fluid silicon infiltration (LSI) are often made use of to improve thickness and mechanical honesty.

3. Mechanical, Thermal, and Environmental Performance

3.1 Stamina, Firmness, and Use Resistance

Silicon carbide rates among the hardest recognized materials, with a Mohs firmness of ~ 9.5 and Vickers hardness surpassing 25 GPa, making it highly resistant to abrasion, erosion, and scratching.

Its flexural strength generally ranges from 300 to 600 MPa, depending upon processing method and grain dimension, and it retains stamina at temperature levels approximately 1400 ° C in inert atmospheres.

Fracture toughness, while modest (~ 3– 4 MPa · m 1ST/ TWO), is sufficient for several architectural applications, specifically when incorporated with fiber reinforcement in ceramic matrix composites (CMCs).

SiC-based CMCs are used in turbine blades, combustor liners, and brake systems, where they use weight cost savings, gas efficiency, and extended life span over metal equivalents.

Its excellent wear resistance makes SiC ideal for seals, bearings, pump elements, and ballistic armor, where toughness under harsh mechanical loading is vital.

3.2 Thermal Conductivity and Oxidation Stability

Among SiC’s most valuable residential properties is its high thermal conductivity– approximately 490 W/m · K for single-crystal 4H-SiC and ~ 30– 120 W/m · K for polycrystalline types– exceeding that of lots of steels and enabling reliable heat dissipation.

This residential property is important in power electronics, where SiC devices generate much less waste warmth and can operate at higher power thickness than silicon-based gadgets.

At raised temperatures in oxidizing settings, SiC creates a protective silica (SiO ₂) layer that slows down more oxidation, providing good ecological sturdiness up to ~ 1600 ° C.

Nevertheless, in water vapor-rich environments, this layer can volatilize as Si(OH)FOUR, resulting in accelerated degradation– a crucial difficulty in gas turbine applications.

4. Advanced Applications in Energy, Electronic Devices, and Aerospace

4.1 Power Electronics and Semiconductor Instruments

Silicon carbide has changed power electronic devices by making it possible for gadgets such as Schottky diodes, MOSFETs, and JFETs that run at higher voltages, regularities, and temperature levels than silicon equivalents.

These gadgets minimize energy losses in electrical lorries, renewable resource inverters, and industrial electric motor drives, adding to global power effectiveness enhancements.

The capability to operate at junction temperature levels over 200 ° C enables simplified air conditioning systems and enhanced system dependability.

Additionally, SiC wafers are used as substrates for gallium nitride (GaN) epitaxy in high-electron-mobility transistors (HEMTs), integrating the benefits of both wide-bandgap semiconductors.

4.2 Nuclear, Aerospace, and Optical Equipments

In atomic power plants, SiC is a crucial part of accident-tolerant gas cladding, where its reduced neutron absorption cross-section, radiation resistance, and high-temperature toughness boost safety and security and efficiency.

In aerospace, SiC fiber-reinforced compounds are made use of in jet engines and hypersonic automobiles for their light-weight and thermal stability.

In addition, ultra-smooth SiC mirrors are used precede telescopes because of their high stiffness-to-density proportion, thermal security, and polishability to sub-nanometer roughness.

In summary, silicon carbide ceramics represent a foundation of modern sophisticated products, combining phenomenal mechanical, thermal, and electronic properties.

Via specific control of polytype, microstructure, and processing, SiC remains to enable technological advancements in energy, transportation, and extreme atmosphere engineering.

5. Supplier

TRUNNANO is a supplier of Spherical Tungsten Powder with over 12 years of experience in nano-building energy conservation and nanotechnology development. It accepts payment via Credit Card, T/T, West Union and Paypal. Trunnano will ship the goods to customers overseas through FedEx, DHL, by air, or by sea. If you want to know more about Spherical Tungsten Powder, please feel free to contact us and send an inquiry(sales5@nanotrun.com).
Tags: silicon carbide ceramic,silicon carbide ceramic products, industry ceramic

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

1.1 Composition, Purity Grades, and Crystallographic Feature

(Alumina Ceramic Wear Liners)

Alumina (Al Two O FIVE), or light weight aluminum oxide, is just one of the most commonly utilized technical porcelains in commercial design because of its outstanding equilibrium of mechanical stamina, chemical stability, and cost-effectiveness.

When crafted into wear linings, alumina porcelains are typically produced with pureness levels varying from 85% to 99.9%, with higher pureness representing improved firmness, wear resistance, and thermal performance.

The dominant crystalline phase is alpha-alumina, which takes on a hexagonal close-packed (HCP) structure defined by strong ionic and covalent bonding, contributing to its high melting factor (~ 2072 ° C )and reduced thermal conductivity.

Microstructurally, alumina porcelains contain fine, equiaxed grains whose size and distribution are managed during sintering to enhance mechanical homes.

Grain dimensions generally vary from submicron to numerous micrometers, with better grains generally enhancing fracture durability and resistance to break propagation under rough loading.

Minor ingredients such as magnesium oxide (MgO) are commonly introduced in trace total up to hinder irregular grain growth throughout high-temperature sintering, guaranteeing consistent microstructure and dimensional security.

The resulting product shows a Vickers firmness of 1500– 2000 HV, substantially going beyond that of hardened steel (usually 600– 800 HV), making it remarkably immune to surface degradation in high-wear environments.

1.2 Mechanical and Thermal Performance in Industrial Conditions

Alumina ceramic wear liners are picked mostly for their impressive resistance to abrasive, erosive, and gliding wear mechanisms common in bulk product handling systems.

They possess high compressive strength (as much as 3000 MPa), great flexural stamina (300– 500 MPa), and outstanding tightness (Youthful’s modulus of ~ 380 Grade point average), allowing them to hold up against extreme mechanical loading without plastic contortion.

Although naturally brittle compared to steels, their reduced coefficient of friction and high surface firmness decrease particle bond and reduce wear rates by orders of size relative to steel or polymer-based options.

Thermally, alumina maintains structural integrity as much as 1600 ° C in oxidizing atmospheres, permitting usage in high-temperature processing environments such as kiln feed systems, boiler ducting, and pyroprocessing tools.

( Alumina Ceramic Wear Liners)

Its reduced thermal development coefficient (~ 8 × 10 ⁻⁶/ K) contributes to dimensional security throughout thermal biking, minimizing the danger of splitting as a result of thermal shock when effectively mounted.

Additionally, alumina is electrically shielding and chemically inert to a lot of acids, antacid, and solvents, making it ideal for corrosive settings where metal linings would deteriorate swiftly.

These mixed residential or commercial properties make alumina porcelains ideal for protecting crucial facilities in mining, power generation, concrete manufacturing, and chemical handling sectors.

2. Manufacturing Processes and Style Assimilation Techniques

2.1 Forming, Sintering, and Quality Control Protocols

The production of alumina ceramic wear linings involves a series of precision manufacturing actions created to attain high thickness, very little porosity, and regular mechanical performance.

Raw alumina powders are refined through milling, granulation, and developing strategies such as completely dry pressing, isostatic pushing, or extrusion, relying on the preferred geometry– tiles, plates, pipelines, or custom-shaped segments.

Eco-friendly bodies are then sintered at temperature levels between 1500 ° C and 1700 ° C in air, promoting densification via solid-state diffusion and achieving relative densities surpassing 95%, commonly coming close to 99% of theoretical thickness.

Complete densification is essential, as residual porosity acts as tension concentrators and speeds up wear and fracture under service problems.

Post-sintering procedures might include diamond grinding or washing to attain limited dimensional tolerances and smooth surface finishes that decrease friction and bit trapping.

Each set undergoes rigorous quality assurance, including X-ray diffraction (XRD) for stage analysis, scanning electron microscopy (SEM) for microstructural analysis, and hardness and bend screening to confirm compliance with global requirements such as ISO 6474 or ASTM B407.

2.2 Mounting Techniques and System Compatibility Factors To Consider

Effective assimilation of alumina wear linings into commercial devices needs careful interest to mechanical add-on and thermal development compatibility.

Typical installation approaches include sticky bonding utilizing high-strength ceramic epoxies, mechanical securing with studs or anchors, and embedding within castable refractory matrices.

Glue bonding is widely utilized for level or gently curved surface areas, offering uniform anxiety circulation and resonance damping, while stud-mounted systems allow for simple substitute and are chosen in high-impact areas.

To suit differential thermal growth between alumina and metal substratums (e.g., carbon steel), crafted spaces, flexible adhesives, or compliant underlayers are included to prevent delamination or fracturing during thermal transients.

Developers need to also consider edge protection, as ceramic floor tiles are at risk to chipping at subjected corners; options consist of beveled sides, steel shrouds, or overlapping ceramic tile setups.

Proper installation makes sure lengthy life span and makes the most of the safety feature of the lining system.

3. Use Mechanisms and Efficiency Analysis in Solution Environments

3.1 Resistance to Abrasive, Erosive, and Impact Loading

Alumina ceramic wear linings master environments dominated by 3 primary wear devices: two-body abrasion, three-body abrasion, and fragment disintegration.

In two-body abrasion, hard bits or surface areas directly gouge the lining surface area, a common event in chutes, hoppers, and conveyor shifts.

Three-body abrasion includes loosened particles entraped between the liner and moving material, resulting in rolling and damaging activity that gradually removes product.

Abrasive wear takes place when high-velocity bits impinge on the surface area, particularly in pneumatic conveying lines and cyclone separators.

Due to its high firmness and low fracture toughness, alumina is most efficient in low-impact, high-abrasion circumstances.

It executes exceptionally well against siliceous ores, coal, fly ash, and concrete clinker, where wear prices can be minimized by 10– 50 times compared to moderate steel linings.

However, in applications including duplicated high-energy impact, such as key crusher chambers, crossbreed systems integrating alumina floor tiles with elastomeric supports or metal shields are often used to absorb shock and avoid fracture.

3.2 Area Screening, Life Process Evaluation, and Failure Setting Analysis

Performance assessment of alumina wear liners entails both research laboratory testing and field surveillance.

Standardized examinations such as the ASTM G65 dry sand rubber wheel abrasion examination give comparative wear indices, while customized slurry erosion rigs simulate site-specific conditions.

In industrial setups, wear price is generally determined in mm/year or g/kWh, with life span forecasts based on preliminary thickness and observed deterioration.

Failure settings consist of surface sprucing up, micro-cracking, spalling at edges, and total ceramic tile dislodgement because of adhesive destruction or mechanical overload.

Origin analysis often reveals installment mistakes, inappropriate quality option, or unexpected influence loads as key contributors to early failing.

Life process expense evaluation consistently shows that in spite of greater preliminary expenses, alumina linings provide superior total expense of possession due to extended replacement intervals, decreased downtime, and reduced maintenance labor.

4. Industrial Applications and Future Technological Advancements

4.1 Sector-Specific Executions Throughout Heavy Industries

Alumina ceramic wear linings are released throughout a broad range of commercial sectors where material deterioration positions operational and financial challenges.

In mining and mineral handling, they shield transfer chutes, mill linings, hydrocyclones, and slurry pumps from rough slurries having quartz, hematite, and various other difficult minerals.

In nuclear power plant, alumina tiles line coal pulverizer air ducts, boiler ash hoppers, and electrostatic precipitator components exposed to fly ash disintegration.

Cement manufacturers make use of alumina linings in raw mills, kiln inlet zones, and clinker conveyors to deal with the very rough nature of cementitious products.

The steel market employs them in blast heating system feed systems and ladle shadows, where resistance to both abrasion and modest thermal tons is vital.

Even in much less conventional applications such as waste-to-energy plants and biomass handling systems, alumina ceramics supply resilient security against chemically aggressive and fibrous materials.

4.2 Arising Fads: Composite Solutions, Smart Liners, and Sustainability

Present study focuses on enhancing the durability and functionality of alumina wear systems through composite design.

Alumina-zirconia (Al ₂ O THREE-ZrO ₂) compounds leverage improvement toughening from zirconia to boost fracture resistance, while alumina-titanium carbide (Al two O TWO-TiC) grades offer improved performance in high-temperature gliding wear.

One more innovation entails installing sensing units within or beneath ceramic linings to keep an eye on wear development, temperature, and influence regularity– making it possible for predictive upkeep and electronic double combination.

From a sustainability viewpoint, the extended life span of alumina linings reduces product intake and waste generation, aligning with round economy principles in commercial operations.

Recycling of spent ceramic liners right into refractory accumulations or building products is likewise being discovered to decrease environmental footprint.

Finally, alumina ceramic wear liners represent a cornerstone of modern commercial wear protection technology.

Their extraordinary hardness, thermal stability, and chemical inertness, combined with fully grown production and installation techniques, make them vital in combating material destruction throughout hefty markets.

As product scientific research advancements and electronic monitoring comes to be more incorporated, the next generation of clever, durable alumina-based systems will further boost operational effectiveness and sustainability in unpleasant atmospheres.

Vendor

Alumina Technology Co., Ltd focus on the research and development, production and sales of aluminum oxide powder, aluminum oxide products, aluminum oxide crucible, etc., serving the electronics, ceramics, chemical and other industries. Since its establishment in 2005, the company has been committed to providing customers with the best products and services. If you are looking for high quality alumina al203, please feel free to contact us. (nanotrun@yahoo.com)
Tags: Alumina Ceramic Wear Liners, Alumina Ceramics, alumina

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

1.1 Crystallographic and Compositional Basis of α-Alumina

(Alumina Ceramic Substrates)

Alumina ceramic substrates, largely composed of aluminum oxide (Al two O SIX), serve as the foundation of modern electronic product packaging as a result of their remarkable balance of electrical insulation, thermal stability, mechanical strength, and manufacturability.

The most thermodynamically secure phase of alumina at heats is diamond, or α-Al ₂ O ₃, which takes shape in a hexagonal close-packed oxygen lattice with light weight aluminum ions inhabiting two-thirds of the octahedral interstitial websites.

This thick atomic plan conveys high hardness (Mohs 9), outstanding wear resistance, and solid chemical inertness, making α-alumina suitable for harsh operating environments.

Commercial substrates commonly have 90– 99.8% Al Two O FOUR, with small additions of silica (SiO ₂), magnesia (MgO), or rare earth oxides used as sintering help to advertise densification and control grain development during high-temperature processing.

Higher purity qualities (e.g., 99.5% and over) exhibit remarkable electric resistivity and thermal conductivity, while reduced pureness variants (90– 96%) supply cost-efficient options for less requiring applications.

1.2 Microstructure and Issue Engineering for Electronic Integrity

The efficiency of alumina substrates in digital systems is seriously based on microstructural harmony and flaw minimization.

A fine, equiaxed grain framework– normally ranging from 1 to 10 micrometers– guarantees mechanical stability and decreases the chance of split proliferation under thermal or mechanical anxiety.

Porosity, particularly interconnected or surface-connected pores, have to be lessened as it deteriorates both mechanical strength and dielectric performance.

Advanced handling techniques such as tape spreading, isostatic pressing, and regulated sintering in air or controlled atmospheres make it possible for the manufacturing of substrates with near-theoretical thickness (> 99.5%) and surface roughness below 0.5 µm, vital for thin-film metallization and wire bonding.

In addition, pollutant segregation at grain limits can result in leakage currents or electrochemical migration under prejudice, requiring stringent control over resources purity and sintering conditions to make sure long-term reliability in moist or high-voltage environments.

2. Production Processes and Substrate Fabrication Technologies

( Alumina Ceramic Substrates)

2.1 Tape Spreading and Eco-friendly Body Processing

The production of alumina ceramic substrates begins with the prep work of a very dispersed slurry containing submicron Al ₂ O five powder, organic binders, plasticizers, dispersants, and solvents.

This slurry is processed through tape casting– a constant method where the suspension is spread over a relocating carrier film making use of a precision physician blade to attain consistent thickness, normally between 0.1 mm and 1.0 mm.

After solvent evaporation, the resulting “green tape” is versatile and can be punched, drilled, or laser-cut to develop through holes for upright interconnections.

Multiple layers may be laminated flooring to produce multilayer substratums for intricate circuit assimilation, although most of commercial applications use single-layer configurations due to set you back and thermal expansion factors to consider.

The eco-friendly tapes are after that very carefully debound to get rid of natural additives through managed thermal decay before last sintering.

2.2 Sintering and Metallization for Circuit Integration

Sintering is performed in air at temperatures between 1550 ° C and 1650 ° C, where solid-state diffusion drives pore removal and grain coarsening to achieve full densification.

The linear shrinkage throughout sintering– normally 15– 20%– should be exactly anticipated and compensated for in the design of green tapes to make certain dimensional precision of the last substratum.

Following sintering, metallization is applied to create conductive traces, pads, and vias.

2 primary methods control: thick-film printing and thin-film deposition.

In thick-film technology, pastes containing steel powders (e.g., tungsten, molybdenum, or silver-palladium alloys) are screen-printed onto the substratum and co-fired in a reducing atmosphere to develop durable, high-adhesion conductors.

For high-density or high-frequency applications, thin-film procedures such as sputtering or dissipation are made use of to deposit adhesion layers (e.g., titanium or chromium) complied with by copper or gold, enabling sub-micron patterning by means of photolithography.

Vias are full of conductive pastes and discharged to establish electric interconnections between layers in multilayer designs.

3. Functional Features and Performance Metrics in Electronic Solution

3.1 Thermal and Electric Habits Under Functional Anxiety

Alumina substratums are treasured for their desirable mix of modest thermal conductivity (20– 35 W/m · K for 96– 99.8% Al ₂ O ₃), which makes it possible for reliable warm dissipation from power devices, and high quantity resistivity (> 10 ¹⁴ Ω · centimeters), making sure very little leakage current.

Their dielectric consistent (εᵣ ≈ 9– 10 at 1 MHz) is steady over a broad temperature and regularity range, making them suitable for high-frequency circuits approximately a number of gigahertz, although lower-κ materials like light weight aluminum nitride are favored for mm-wave applications.

The coefficient of thermal expansion (CTE) of alumina (~ 6.8– 7.2 ppm/K) is fairly well-matched to that of silicon (~ 3 ppm/K) and particular packaging alloys, decreasing thermo-mechanical anxiety throughout tool operation and thermal biking.

Nevertheless, the CTE mismatch with silicon continues to be an issue in flip-chip and direct die-attach arrangements, often needing certified interposers or underfill products to reduce tiredness failing.

3.2 Mechanical Effectiveness and Environmental Longevity

Mechanically, alumina substratums exhibit high flexural toughness (300– 400 MPa) and outstanding dimensional security under tons, enabling their usage in ruggedized electronic devices for aerospace, automotive, and commercial control systems.

They are immune to resonance, shock, and creep at elevated temperatures, preserving structural stability approximately 1500 ° C in inert ambiences.

In moist atmospheres, high-purity alumina shows minimal moisture absorption and outstanding resistance to ion migration, making certain long-term integrity in exterior and high-humidity applications.

Surface hardness likewise safeguards versus mechanical damage during handling and setting up, although treatment must be taken to prevent edge breaking as a result of integral brittleness.

4. Industrial Applications and Technological Impact Throughout Sectors

4.1 Power Electronic Devices, RF Modules, and Automotive Systems

Alumina ceramic substratums are common in power electronic components, including shielded gate bipolar transistors (IGBTs), MOSFETs, and rectifiers, where they offer electrical isolation while helping with warmth transfer to heat sinks.

In radio frequency (RF) and microwave circuits, they serve as carrier systems for hybrid incorporated circuits (HICs), surface area acoustic wave (SAW) filters, and antenna feed networks because of their steady dielectric homes and reduced loss tangent.

In the automotive industry, alumina substrates are used in engine control units (ECUs), sensing unit packages, and electric automobile (EV) power converters, where they withstand heats, thermal cycling, and exposure to harsh liquids.

Their reliability under extreme conditions makes them essential for safety-critical systems such as anti-lock braking (ABDOMINAL MUSCLE) and advanced driver help systems (ADAS).

4.2 Medical Tools, Aerospace, and Emerging Micro-Electro-Mechanical Systems

Beyond consumer and commercial electronics, alumina substratums are used in implantable medical gadgets such as pacemakers and neurostimulators, where hermetic sealing and biocompatibility are paramount.

In aerospace and protection, they are made use of in avionics, radar systems, and satellite communication components because of their radiation resistance and stability in vacuum cleaner settings.

Additionally, alumina is increasingly utilized as a structural and protecting platform in micro-electro-mechanical systems (MEMS), including pressure sensing units, accelerometers, and microfluidic gadgets, where its chemical inertness and compatibility with thin-film processing are helpful.

As digital systems remain to require greater power thickness, miniaturization, and dependability under extreme conditions, alumina ceramic substratums remain a keystone material, linking the space between performance, expense, and manufacturability in advanced digital product packaging.

5. Vendor

Alumina Technology Co., Ltd focus on the research and development, production and sales of aluminum oxide powder, aluminum oxide products, aluminum oxide crucible, etc., serving the electronics, ceramics, chemical and other industries. Since its establishment in 2005, the company has been committed to providing customers with the best products and services. If you are looking for high quality alumina al203, please feel free to contact us. (nanotrun@yahoo.com)
Tags: Alumina Ceramic Substrates, Alumina Ceramics, alumina

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

1.1 Atomic Structure and Polytypic Complexity

(Silicon Carbide Powder)

Silicon carbide (SiC) is a binary substance composed of silicon and carbon atoms arranged in a very steady covalent latticework, identified by its exceptional solidity, thermal conductivity, and digital residential or commercial properties.

Unlike standard semiconductors such as silicon or germanium, SiC does not exist in a solitary crystal framework however materializes in over 250 unique polytypes– crystalline forms that vary in the stacking sequence of silicon-carbon bilayers along the c-axis.

The most highly pertinent polytypes consist of 3C-SiC (cubic, zincblende framework), 4H-SiC, and 6H-SiC (both hexagonal), each showing discreetly different digital and thermal qualities.

Amongst these, 4H-SiC is specifically favored for high-power and high-frequency electronic gadgets due to its higher electron flexibility and reduced on-resistance compared to other polytypes.

The strong covalent bonding– comprising around 88% covalent and 12% ionic character– confers remarkable mechanical toughness, chemical inertness, and resistance to radiation damage, making SiC ideal for procedure in severe settings.

1.2 Electronic and Thermal Features

The digital prevalence of SiC originates from its vast bandgap, which varies from 2.3 eV (3C-SiC) to 3.3 eV (4H-SiC), substantially bigger than silicon’s 1.1 eV.

This large bandgap allows SiC gadgets to run at a lot higher temperature levels– up to 600 ° C– without innate service provider generation overwhelming the tool, an essential constraint in silicon-based electronic devices.

Furthermore, SiC possesses a high important electrical area stamina (~ 3 MV/cm), about ten times that of silicon, enabling thinner drift layers and higher break down voltages in power gadgets.

Its thermal conductivity (~ 3.7– 4.9 W/cm · K for 4H-SiC) exceeds that of copper, facilitating reliable warmth dissipation and reducing the need for complex cooling systems in high-power applications.

Incorporated with a high saturation electron speed (~ 2 × 10 ⁷ cm/s), these residential properties allow SiC-based transistors and diodes to switch faster, manage greater voltages, and run with greater energy efficiency than their silicon equivalents.

These qualities collectively place SiC as a foundational material for next-generation power electronics, specifically in electrical vehicles, renewable energy systems, and aerospace innovations.

( Silicon Carbide Powder)

2. Synthesis and Construction of High-Quality Silicon Carbide Crystals

2.1 Bulk Crystal Growth through Physical Vapor Transportation

The manufacturing of high-purity, single-crystal SiC is among one of the most challenging aspects of its technical release, primarily due to its high sublimation temperature (~ 2700 ° C )and complicated polytype control.

The leading method for bulk growth is the physical vapor transportation (PVT) method, likewise called the customized Lely method, in which high-purity SiC powder is sublimated in an argon environment at temperature levels surpassing 2200 ° C and re-deposited onto a seed crystal.

Specific control over temperature level slopes, gas circulation, and stress is important to minimize issues such as micropipes, misplacements, and polytype inclusions that degrade device efficiency.

In spite of advancements, the growth rate of SiC crystals stays sluggish– normally 0.1 to 0.3 mm/h– making the procedure energy-intensive and pricey contrasted to silicon ingot manufacturing.

Ongoing study focuses on optimizing seed positioning, doping uniformity, and crucible layout to improve crystal top quality and scalability.

2.2 Epitaxial Layer Deposition and Device-Ready Substratums

For digital device manufacture, a slim epitaxial layer of SiC is grown on the mass substrate making use of chemical vapor deposition (CVD), normally utilizing silane (SiH ₄) and lp (C FOUR H EIGHT) as precursors in a hydrogen environment.

This epitaxial layer should display exact thickness control, low problem density, and customized doping (with nitrogen for n-type or light weight aluminum for p-type) to form the energetic areas of power gadgets such as MOSFETs and Schottky diodes.

The lattice inequality between the substratum and epitaxial layer, together with residual tension from thermal expansion differences, can introduce stacking mistakes and screw dislocations that influence gadget integrity.

Advanced in-situ tracking and process optimization have actually dramatically decreased issue thickness, allowing the business manufacturing of high-performance SiC tools with lengthy functional lifetimes.

Furthermore, the advancement of silicon-compatible processing methods– such as completely dry etching, ion implantation, and high-temperature oxidation– has actually promoted combination right into existing semiconductor manufacturing lines.

3. Applications in Power Electronics and Energy Solution

3.1 High-Efficiency Power Conversion and Electric Movement

Silicon carbide has actually become a cornerstone product in modern-day power electronic devices, where its ability to switch over at high regularities with very little losses equates right into smaller, lighter, and much more efficient systems.

In electric vehicles (EVs), SiC-based inverters transform DC battery power to a/c for the electric motor, operating at regularities approximately 100 kHz– significantly higher than silicon-based inverters– lowering the size of passive elements like inductors and capacitors.

This causes increased power thickness, expanded driving array, and improved thermal administration, directly addressing essential obstacles in EV design.

Major automobile makers and providers have adopted SiC MOSFETs in their drivetrain systems, accomplishing power financial savings of 5– 10% compared to silicon-based services.

Similarly, in onboard chargers and DC-DC converters, SiC gadgets allow much faster billing and greater performance, speeding up the transition to lasting transportation.

3.2 Renewable Energy and Grid Infrastructure

In photovoltaic (PV) solar inverters, SiC power components enhance conversion efficiency by minimizing changing and transmission losses, particularly under partial tons conditions typical in solar power generation.

This renovation enhances the overall energy yield of solar installments and minimizes cooling needs, reducing system expenses and improving reliability.

In wind turbines, SiC-based converters handle the variable regularity outcome from generators more successfully, enabling better grid assimilation and power high quality.

Beyond generation, SiC is being deployed in high-voltage straight present (HVDC) transmission systems and solid-state transformers, where its high breakdown voltage and thermal security support compact, high-capacity power distribution with minimal losses over fars away.

These developments are vital for modernizing aging power grids and suiting the expanding share of dispersed and periodic renewable sources.

4. Emerging Duties in Extreme-Environment and Quantum Technologies

4.1 Operation in Extreme Conditions: Aerospace, Nuclear, and Deep-Well Applications

The toughness of SiC extends beyond electronic devices right into settings where traditional materials fail.

In aerospace and protection systems, SiC sensing units and electronics operate reliably in the high-temperature, high-radiation conditions near jet engines, re-entry vehicles, and room probes.

Its radiation firmness makes it ideal for atomic power plant monitoring and satellite electronic devices, where direct exposure to ionizing radiation can weaken silicon gadgets.

In the oil and gas industry, SiC-based sensors are made use of in downhole drilling tools to stand up to temperatures exceeding 300 ° C and destructive chemical atmospheres, allowing real-time data acquisition for improved extraction efficiency.

These applications take advantage of SiC’s capacity to maintain architectural honesty and electric functionality under mechanical, thermal, and chemical stress.

4.2 Assimilation into Photonics and Quantum Sensing Operatings Systems

Beyond classic electronic devices, SiC is emerging as an appealing system for quantum modern technologies as a result of the existence of optically active factor issues– such as divacancies and silicon jobs– that show spin-dependent photoluminescence.

These flaws can be manipulated at room temperature, working as quantum little bits (qubits) or single-photon emitters for quantum interaction and picking up.

The large bandgap and reduced innate service provider focus allow for long spin comprehensibility times, essential for quantum information processing.

In addition, SiC works with microfabrication methods, allowing the assimilation of quantum emitters into photonic circuits and resonators.

This mix of quantum functionality and commercial scalability positions SiC as an one-of-a-kind product linking the space in between fundamental quantum science and functional tool engineering.

In recap, silicon carbide stands for a standard shift in semiconductor modern technology, providing exceptional efficiency in power effectiveness, thermal management, and ecological strength.

From making it possible for greener power systems to supporting expedition in space and quantum realms, SiC continues to redefine the limits of what is technically possible.

Vendor

RBOSCHCO is a trusted global chemical material supplier & manufacturer with over 12 years experience in providing super high-quality chemicals and Nanomaterials. The company export to many countries, such as USA, Canada, Europe, UAE, South Africa, Tanzania, Kenya, Egypt, Nigeria, Cameroon, Uganda, Turkey, Mexico, Azerbaijan, Belgium, Cyprus, Czech Republic, Brazil, Chile, Argentina, Dubai, Japan, Korea, Vietnam, Thailand, Malaysia, Indonesia, Australia,Germany, France, Italy, Portugal etc. As a leading nanotechnology development manufacturer, RBOSCHCO dominates the market. Our professional work team provides perfect solutions to help improve the efficiency of various industries, create value, and easily cope with various challenges. If you are looking for silicon sic, please send an email to: sales1@rboschco.com
Tags: silicon carbide,silicon carbide mosfet,mosfet sic

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]

Alumina Modern Technology Co., Ltd was developed in 2005 with a clear objective: to come to be a leading global provider of top quality light weight aluminum oxide products, including alumina powders, alumina products, and specialized elements such as alumina crucibles.

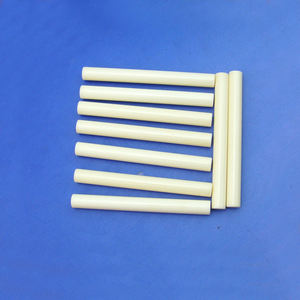

(Alumina Ceramics Bar)

From its creation, the company focused on the research, development, and production of alumina-based materials customized to fulfill the strict needs of the electronic devices, ceramics, chemical, and high-temperature sectors.

Alumina Bar, a core item in the company’s profile, quickly got acknowledgment for its premium mechanical strength, high thermal resistance, and superb electrical insulation residential properties, making it indispensable in high-performance industrial applications.

International Demand and Industrial Importance

Alumina Bars are widely made use of in architectural elements, protecting elements, wear-resistant parts, and high-temperature furnace supports as a result of their outstanding hardness and chemical inertness.

With the fast development of the semiconductor, aerospace, and advanced ceramics markets, the need for high-purity alumina bars has risen around the world. The around the world market for alumina porcelains has actually grown substantially, with alumina bars representing an essential section because of their adaptability and performance in severe settings.

Alumina Modern Technology Co., Ltd has responded to this expanding need by improving its production capacity while maintaining the greatest standards of product pureness and structural integrity.

Refine Technology and Item Optimization

One of the crucial staminas of Alumina Modern technology Co., Ltd hinges on its continual improvement of the alumina bar production process to guarantee superior item top quality and efficiency.

Typical alumina bar manufacturing commonly deals with obstacles such as unequal grain distribution, porosity, and irregular mechanical buildings. To overcome these problems, the company has actually developed sophisticated powder prep work, isostatic pressing, and high-temperature sintering strategies that substantially improve the microstructural uniformity and thickness of the final product.

These procedure advancements have caused alumina bars with marginal porosity, superb mechanical stamina, and consistent dimensional accuracy, satisfying the exacting specs required by modern markets.

Item Performance and Application Versatility

Alumina Technology Co., Ltd supplies a variety of alumina bars with differing alumina web content– from 96% to 99.98%– to fit varied commercial requirements.

High-purity alumina bars generated by the company show thermal conductivities surpassing 30 W/m · K, electric resistivities above 10 ¹⁴ Ω · centimeters, and flexural staminas reaching over 350 MPa, making them excellent for use in semiconductor production, laser parts, and vacuum systems.

( Alumina Ceramics Bar)

For commercial applications where cost-effectiveness and durability are essential, the business’s medium-purity alumina bars give exceptional wear resistance and deterioration protection without jeopardizing performance.

This convenience has made Alumina Technology’s alumina bars a recommended selection throughout numerous fields, including electronics, chemical processing, and high-temperature engineering.

Modification and Market Cooperation

Comprehending that alumina bars must typically be customized to meet particular useful and dimensional needs, Alumina Innovation Co., Ltd has built a durable personalization framework.

The firm functions closely with clients to create application-specific alumina bars for use in heating system parts, protecting supports, mechanical seals, and chemical activator cellular linings. By integrating consumer comments right into the style and production cycle, Alumina Innovation ensures that its alumina bars not only meet yet commonly exceed the performance expectations of end-users.

This collective approach has brought about lasting collaborations with leading makers in the semiconductor, chemical, and power fields, strengthening the business’s credibility as a relied on vendor of high-performance ceramic products.

Global Market Visibility and Industry Recognition

Over the previous twenty years, Alumina Technology Co., Ltd has actually expanded its market reach to include customers across The United States and Canada, Europe, Southeast Asia, and the Middle East.

Its alumina bars are currently commonly acknowledged for their integrity, precision, and adaptability in mission-critical applications. By preserving a strong presence in global profession exhibitions and technological meetings, Alumina Innovation has actually effectively positioned itself as a principal in the international sophisticated porcelains industry.

This growing influence is a testimony to the company’s unrelenting search of quality in material science and manufacturing development. As sectors remain to advance, Alumina Technology remains dedicated to advancing alumina bar innovation to fulfill the next generation of engineering challenges.

Conclusion

Alumina Technology Co., Ltd has developed a prominent tradition with its pioneering operate in the growth and manufacturing of high-performance alumina bars. Considering that its founding in 2005, the business has constantly refined its production processes, enhanced material buildings, and customized solutions to industrial requirements.

With a focus on scientific quality and industrial importance, Alumina Innovation has actually established itself as a trusted worldwide supplier of alumina bars, serving the electronic devices, chemical, and high-temperature industries with precision-engineered ceramic solutions.

Supplie

Alumina Technology Co., Ltd focus on the research and development, production and sales of aluminum oxide powder, aluminum oxide products, aluminum oxide crucible, etc., serving the electronics, ceramics, chemical and other industries. Since its establishment in 2005, the company has been committed to providing customers with the best products and services. If you are looking for high quality alumina ceramic insulator, please feel free to contact us. (nanotrun@yahoo.com)
Tags: Alumina Ceramics, alumina, aluminum oxide

All articles and pictures are from the Internet. If there are any copyright issues, please contact us in time to delete.

Inquiry us [contact-form-7]
