1. Product Qualities and Structural Design
1.1 Structure and Crystalline Phases of Alumina

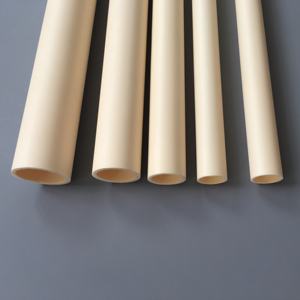

( Alumina Ceramic Tubes)
Alumina (Al ₂ O FOUR) ceramic tubes are primarily fabricated from high-purity light weight aluminum oxide, with purity levels usually varying from 90% to 99.8%, relying on the intended application.
The dominant crystalline stage in completely thick, high-temperature sintered tubes is α-alumina (corundum), which displays a trigonal crystal structure and extraordinary thermodynamic security.
This phase shift from forerunner hydroxides (e.g., boehmite or gibbsite) to α-alumina occurs above 1100 ° C and leads to a thick, interlacing microstructure that offers impressive mechanical stamina and chemical resistance.
Greater purity qualities (≥ 99.5%) take full advantage of firmness, use resistance, and dielectric efficiency, while lower-purity formulations might integrate secondary stages like mullite or lustrous grain border stages to minimize price or dressmaker thermal growth.
The ability to control grain size, porosity, and stage make-up during processing allows designers to tweak alumina tubes for certain functional needs throughout varied industrial domain names.
1.2 Mechanical, Thermal, and Electric Properties
Alumina ceramic tubes exhibit an unique mix of physical residential properties that make them essential sought after engineering environments.
With a Vickers solidity exceeding 1500 HV, they are highly immune to abrasion and erosion, outshining most metals and polymers in wear-prone systems.
Their compressive stamina can get to 2000 MPa, allowing architectural use under high mechanical loads, while flexural toughness typically ranges from 300 to 500 MPa, depending upon density and surface coating.
Thermally, alumina preserves security as much as 1700 ° C in oxidizing ambiences, with a reduced coefficient of thermal development (~ 8 ppm/K), contributing to excellent thermal shock resistance when effectively developed.
Although its thermal conductivity (~ 30 W/(m · K)) is moderate contrasted to metals or aluminum nitride, it is sufficient for many high-temperature applications where electric insulation and architectural integrity are focused on.
Electrically, alumina is a superior insulator with quantity resistivity > 10 ¹⁴ Ω · cm and high dielectric strength (> 15 kV/mm), making it excellent for electrical feedthroughs, sensing unit real estates, and high-voltage insulation.
( Alumina Ceramic Tubes)
2. Production Processes and Dimensional Control
2.1 Forming and Developing Techniques
The production of alumina ceramic tubes involves advanced forming approaches customized to accomplish precise dimensions, wall thickness uniformity, and surface area quality.
Typical methods include extrusion, isostatic pressing, and slip casting, each fit to various size ranges and performance needs.
Extrusion is extensively made use of for long, straight tubes with constant cross-sections, where a plasticized alumina paste is required through a die and cut to length prior to drying out and sintering.
For high-precision or thin-walled tubes, cool isostatic pushing (CIP) applies uniform pressure from all directions to small eco-friendly bodies, lessening distortion and boosting thickness homogeneity.
Slip casting, including the deposition of a colloidal alumina suspension (slip) onto a permeable plaster mold and mildew, is excellent for complex or large-diameter geometries with variable wall density.
After developing, tubes undertake careful drying out to stop splitting, adhered to by binder fatigue and high-temperature sintering (1500– 1650 ° C )to attain full densification and dimensional security.
2.2 Completing and Quality Control
Post-sintering operations such as centerless grinding, splashing, and brightening are utilized to accomplish tight tolerances, smooth surface coatings, and specific internal and outer sizes.
Resistances as limited as ± 0.01 mm are achievable for important applications in semiconductor handling or analytical instrumentation.
Surface roughness can be reduced to Ra < 0.1 µm, reducing fragment capturing and enhancing compatibility with ultra-high vacuum (UHV) or cleanroom environments.
Non-destructive testing methods– including ultrasonic assessment, X-ray radiography, and dye penetrant screening– guarantee structural stability and lack of splits or voids.
Dimensional assessment utilizing coordinate determining machines (CMM) or laser scanning verifies conformity with design specs, particularly for customized or high-volume production runs.
3. Practical Performance in Harsh Environments
3.1 Resistance to Thermal and Chemical Degradation
One of the most engaging benefits of alumina ceramic tubes is their ability to hold up against severe thermal and chemical problems where metals and polymers fail.
They stay dimensionally secure and mechanically robust in constant solution at temperature levels over 1500 ° C, making them appropriate for furnace liners, thermocouple security sheaths, and glowing heating system tubes.
Their inertness to molten metals (e.g., aluminum, zinc, and non-ferrous alloys), liquified salts, and several acids (other than hydrofluoric and hot phosphoric acid) allows use in metallurgical and chemical handling devices.
In oxidizing and decreasing ambiences, alumina does not deteriorate or catalyze undesirable responses, maintaining procedure purity in semiconductor and glass production.
This chemical inertness additionally protects against contamination in high-purity liquid taking care of systems, including those made use of in pharmaceutical and food handling markets.
3.2 Electrical Insulation and Plasma Resistance
In electrical and plasma settings, alumina tubes act as insulating obstacles that preserve circuit honesty under high voltage and raised temperature.
They are used in high-intensity discharge (HID) lights, where they include ionized gases at temperature levels surpassing 1000 ° C while holding up against electric possibilities of numerous kilovolts.
In plasma etching and deposition systems, alumina tubes work as dielectric windows or gas circulation elements, withstanding ion bombardment and thermal cycling without splitting or outgassing.
Their low dielectric loss and high arc resistance avoid electric monitoring and malfunction, making sure lengthy service life in switchgear and power transmission parts.
These homes are crucial in preserving process security and equipment integrity in advanced production and energy systems.
4. Industrial and Arising Applications
4.1 High-Temperature and Industrial Handling Solutions
Alumina ceramic tubes are indispensable to a vast array of industrial procedures that demand resilience under severe conditions.
In thermal processing, they serve as protective sheaths for thermocouples and heating elements in kilns, heating systems, and warmth treatment equipment, shielding delicate parts from destructive ambiences and mechanical wear.
In fluid handling, they transport aggressive chemicals, slurries, and high-temperature gases in petrochemical refineries, desalination plants, and waste incineration systems.
Their resistance to thermal shock enables quick home heating and cooling cycles without failing, an essential benefit in cyclic commercial operations.
In glass production, alumina tubes assist liquified glass circulations and assistance developing equipment, resisting erosion from viscous, high-temperature thaws.
4.2 Advanced Technologies and Future Integration
Beyond conventional industrial uses, alumina tubes are finding brand-new duties in advanced innovations.
In semiconductor fabrication, ultra-pure alumina tubes are made use of in chemical vapor deposition (CVD) reactors and ion implantation systems, where bit generation and metal contamination should be minimized.
In medical gadgets, biocompatible alumina tubes serve as protecting components in medical devices, dental implants, and analysis sensing units.
Research study is discovering functionalized alumina tubes with ingrained sensing units or conductive traces for clever architectural surveillance in aerospace and energy systems.
Additive manufacturing (3D printing) of alumina is emerging as a method to produce complicated tube geometries with internal channels or graded structures, making it possible for next-generation warmth exchangers and microreactors.
As sectors push toward greater effectiveness, cleaner procedures, and greater dependability, alumina ceramic tubes remain to evolve as allowing parts in the infrastructure of modern innovation.
In recap, alumina ceramic tubes stand for a mature yet dynamically advancing class of crafted products, incorporating outstanding thermal, mechanical, and electric efficiency in a solitary not natural conduit.
Their flexibility throughout extreme environments ensures their ongoing relevance in both established commercial systems and arising state-of-the-art applications.
