1. Product Fundamentals and Microstructural Features of Alumina Ceramics
1.1 Composition, Purity Grades, and Crystallographic Feature

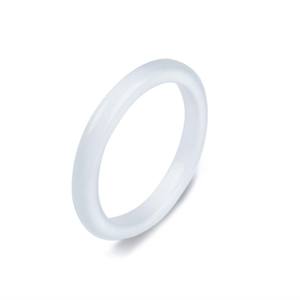

(Alumina Ceramic Wear Liners)
Alumina (Al Two O FIVE), or light weight aluminum oxide, is just one of the most commonly utilized technical porcelains in commercial design because of its outstanding equilibrium of mechanical stamina, chemical stability, and cost-effectiveness.
When crafted into wear linings, alumina porcelains are typically produced with pureness levels varying from 85% to 99.9%, with higher pureness representing improved firmness, wear resistance, and thermal performance.
The dominant crystalline phase is alpha-alumina, which takes on a hexagonal close-packed (HCP) structure defined by strong ionic and covalent bonding, contributing to its high melting factor (~ 2072 ° C )and reduced thermal conductivity.
Microstructurally, alumina porcelains contain fine, equiaxed grains whose size and distribution are managed during sintering to enhance mechanical homes.
Grain dimensions generally vary from submicron to numerous micrometers, with better grains generally enhancing fracture durability and resistance to break propagation under rough loading.
Minor ingredients such as magnesium oxide (MgO) are commonly introduced in trace total up to hinder irregular grain growth throughout high-temperature sintering, guaranteeing consistent microstructure and dimensional security.
The resulting product shows a Vickers firmness of 1500– 2000 HV, substantially going beyond that of hardened steel (usually 600– 800 HV), making it remarkably immune to surface degradation in high-wear environments.
1.2 Mechanical and Thermal Performance in Industrial Conditions
Alumina ceramic wear liners are picked mostly for their impressive resistance to abrasive, erosive, and gliding wear mechanisms common in bulk product handling systems.
They possess high compressive strength (as much as 3000 MPa), great flexural stamina (300– 500 MPa), and outstanding tightness (Youthful’s modulus of ~ 380 Grade point average), allowing them to hold up against extreme mechanical loading without plastic contortion.
Although naturally brittle compared to steels, their reduced coefficient of friction and high surface firmness decrease particle bond and reduce wear rates by orders of size relative to steel or polymer-based options.
Thermally, alumina maintains structural integrity as much as 1600 ° C in oxidizing atmospheres, permitting usage in high-temperature processing environments such as kiln feed systems, boiler ducting, and pyroprocessing tools.

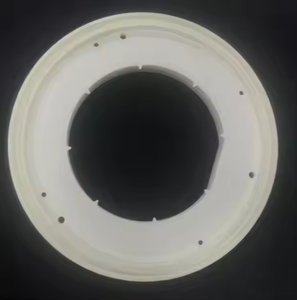

( Alumina Ceramic Wear Liners)
Its reduced thermal development coefficient (~ 8 × 10 ⁻⁶/ K) contributes to dimensional security throughout thermal biking, minimizing the danger of splitting as a result of thermal shock when effectively mounted.
Additionally, alumina is electrically shielding and chemically inert to a lot of acids, antacid, and solvents, making it ideal for corrosive settings where metal linings would deteriorate swiftly.
These mixed residential or commercial properties make alumina porcelains ideal for protecting crucial facilities in mining, power generation, concrete manufacturing, and chemical handling sectors.
2. Manufacturing Processes and Style Assimilation Techniques
2.1 Forming, Sintering, and Quality Control Protocols
The production of alumina ceramic wear linings involves a series of precision manufacturing actions created to attain high thickness, very little porosity, and regular mechanical performance.
Raw alumina powders are refined through milling, granulation, and developing strategies such as completely dry pressing, isostatic pushing, or extrusion, relying on the preferred geometry– tiles, plates, pipelines, or custom-shaped segments.
Eco-friendly bodies are then sintered at temperature levels between 1500 ° C and 1700 ° C in air, promoting densification via solid-state diffusion and achieving relative densities surpassing 95%, commonly coming close to 99% of theoretical thickness.
Complete densification is essential, as residual porosity acts as tension concentrators and speeds up wear and fracture under service problems.
Post-sintering procedures might include diamond grinding or washing to attain limited dimensional tolerances and smooth surface finishes that decrease friction and bit trapping.
Each set undergoes rigorous quality assurance, including X-ray diffraction (XRD) for stage analysis, scanning electron microscopy (SEM) for microstructural analysis, and hardness and bend screening to confirm compliance with global requirements such as ISO 6474 or ASTM B407.
2.2 Mounting Techniques and System Compatibility Factors To Consider
Effective assimilation of alumina wear linings into commercial devices needs careful interest to mechanical add-on and thermal development compatibility.
Typical installation approaches include sticky bonding utilizing high-strength ceramic epoxies, mechanical securing with studs or anchors, and embedding within castable refractory matrices.
Glue bonding is widely utilized for level or gently curved surface areas, offering uniform anxiety circulation and resonance damping, while stud-mounted systems allow for simple substitute and are chosen in high-impact areas.
To suit differential thermal growth between alumina and metal substratums (e.g., carbon steel), crafted spaces, flexible adhesives, or compliant underlayers are included to prevent delamination or fracturing during thermal transients.
Developers need to also consider edge protection, as ceramic floor tiles are at risk to chipping at subjected corners; options consist of beveled sides, steel shrouds, or overlapping ceramic tile setups.
Proper installation makes sure lengthy life span and makes the most of the safety feature of the lining system.
3. Use Mechanisms and Efficiency Analysis in Solution Environments
3.1 Resistance to Abrasive, Erosive, and Impact Loading
Alumina ceramic wear linings master environments dominated by 3 primary wear devices: two-body abrasion, three-body abrasion, and fragment disintegration.
In two-body abrasion, hard bits or surface areas directly gouge the lining surface area, a common event in chutes, hoppers, and conveyor shifts.
Three-body abrasion includes loosened particles entraped between the liner and moving material, resulting in rolling and damaging activity that gradually removes product.
Abrasive wear takes place when high-velocity bits impinge on the surface area, particularly in pneumatic conveying lines and cyclone separators.
Due to its high firmness and low fracture toughness, alumina is most efficient in low-impact, high-abrasion circumstances.
It executes exceptionally well against siliceous ores, coal, fly ash, and concrete clinker, where wear prices can be minimized by 10– 50 times compared to moderate steel linings.
However, in applications including duplicated high-energy impact, such as key crusher chambers, crossbreed systems integrating alumina floor tiles with elastomeric supports or metal shields are often used to absorb shock and avoid fracture.
3.2 Area Screening, Life Process Evaluation, and Failure Setting Analysis
Performance assessment of alumina wear liners entails both research laboratory testing and field surveillance.
Standardized examinations such as the ASTM G65 dry sand rubber wheel abrasion examination give comparative wear indices, while customized slurry erosion rigs simulate site-specific conditions.
In industrial setups, wear price is generally determined in mm/year or g/kWh, with life span forecasts based on preliminary thickness and observed deterioration.
Failure settings consist of surface sprucing up, micro-cracking, spalling at edges, and total ceramic tile dislodgement because of adhesive destruction or mechanical overload.
Origin analysis often reveals installment mistakes, inappropriate quality option, or unexpected influence loads as key contributors to early failing.
Life process expense evaluation consistently shows that in spite of greater preliminary expenses, alumina linings provide superior total expense of possession due to extended replacement intervals, decreased downtime, and reduced maintenance labor.
4. Industrial Applications and Future Technological Advancements
4.1 Sector-Specific Executions Throughout Heavy Industries
Alumina ceramic wear linings are released throughout a broad range of commercial sectors where material deterioration positions operational and financial challenges.
In mining and mineral handling, they shield transfer chutes, mill linings, hydrocyclones, and slurry pumps from rough slurries having quartz, hematite, and various other difficult minerals.
In nuclear power plant, alumina tiles line coal pulverizer air ducts, boiler ash hoppers, and electrostatic precipitator components exposed to fly ash disintegration.
Cement manufacturers make use of alumina linings in raw mills, kiln inlet zones, and clinker conveyors to deal with the very rough nature of cementitious products.
The steel market employs them in blast heating system feed systems and ladle shadows, where resistance to both abrasion and modest thermal tons is vital.
Even in much less conventional applications such as waste-to-energy plants and biomass handling systems, alumina ceramics supply resilient security against chemically aggressive and fibrous materials.
4.2 Arising Fads: Composite Solutions, Smart Liners, and Sustainability
Present study focuses on enhancing the durability and functionality of alumina wear systems through composite design.
Alumina-zirconia (Al ₂ O THREE-ZrO ₂) compounds leverage improvement toughening from zirconia to boost fracture resistance, while alumina-titanium carbide (Al two O TWO-TiC) grades offer improved performance in high-temperature gliding wear.
One more innovation entails installing sensing units within or beneath ceramic linings to keep an eye on wear development, temperature, and influence regularity– making it possible for predictive upkeep and electronic double combination.
From a sustainability viewpoint, the extended life span of alumina linings reduces product intake and waste generation, aligning with round economy principles in commercial operations.
Recycling of spent ceramic liners right into refractory accumulations or building products is likewise being discovered to decrease environmental footprint.
Finally, alumina ceramic wear liners represent a cornerstone of modern commercial wear protection technology.
Their extraordinary hardness, thermal stability, and chemical inertness, combined with fully grown production and installation techniques, make them vital in combating material destruction throughout hefty markets.
As product scientific research advancements and electronic monitoring comes to be more incorporated, the next generation of clever, durable alumina-based systems will further boost operational effectiveness and sustainability in unpleasant atmospheres.
