1. Product Foundations and Synergistic Design
1.1 Innate Characteristics of Component Phases

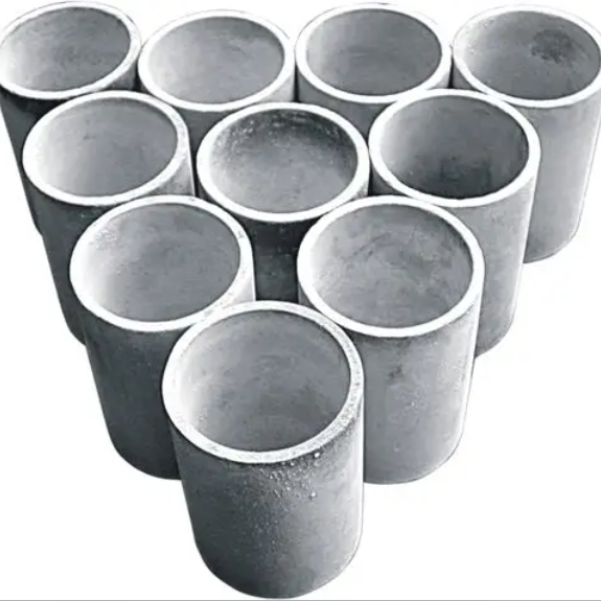

(Silicon nitride and silicon carbide composite ceramic)
Silicon nitride (Si six N FOUR) and silicon carbide (SiC) are both covalently adhered, non-oxide ceramics renowned for their remarkable efficiency in high-temperature, corrosive, and mechanically requiring atmospheres.
Silicon nitride exhibits impressive fracture toughness, thermal shock resistance, and creep security because of its distinct microstructure made up of lengthened β-Si three N four grains that make it possible for crack deflection and linking mechanisms.
It keeps strength approximately 1400 ° C and has a reasonably reduced thermal growth coefficient (~ 3.2 × 10 ⁻⁶/ K), minimizing thermal anxieties during quick temperature adjustments.
In contrast, silicon carbide offers superior solidity, thermal conductivity (approximately 120– 150 W/(m · K )for solitary crystals), oxidation resistance, and chemical inertness, making it optimal for unpleasant and radiative warm dissipation applications.
Its wide bandgap (~ 3.3 eV for 4H-SiC) additionally gives superb electric insulation and radiation tolerance, useful in nuclear and semiconductor contexts.
When integrated into a composite, these products display complementary habits: Si two N four enhances durability and damage resistance, while SiC enhances thermal administration and use resistance.
The resulting crossbreed ceramic attains an equilibrium unattainable by either phase alone, developing a high-performance structural product customized for severe solution conditions.
1.2 Composite Architecture and Microstructural Design
The layout of Si six N ₄– SiC compounds entails accurate control over phase distribution, grain morphology, and interfacial bonding to maximize synergistic results.
Normally, SiC is introduced as fine particulate support (ranging from submicron to 1 µm) within a Si five N ₄ matrix, although functionally rated or split architectures are likewise explored for specialized applications.
During sintering– usually through gas-pressure sintering (GENERAL PRACTITIONER) or hot pushing– SiC fragments affect the nucleation and growth kinetics of β-Si six N ₄ grains, usually promoting finer and even more uniformly oriented microstructures.
This improvement improves mechanical homogeneity and reduces imperfection dimension, adding to better stamina and reliability.
Interfacial compatibility in between both phases is important; because both are covalent porcelains with similar crystallographic balance and thermal expansion habits, they form systematic or semi-coherent limits that withstand debonding under load.
Ingredients such as yttria (Y ₂ O FIVE) and alumina (Al two O TWO) are made use of as sintering aids to promote liquid-phase densification of Si six N ₄ without jeopardizing the stability of SiC.
Nevertheless, excessive additional stages can weaken high-temperature efficiency, so make-up and handling have to be maximized to lessen glassy grain boundary films.
2. Processing Techniques and Densification Obstacles
( Silicon nitride and silicon carbide composite ceramic)
2.1 Powder Preparation and Shaping Techniques
High-quality Si Three N FOUR– SiC composites start with homogeneous mixing of ultrafine, high-purity powders using wet round milling, attrition milling, or ultrasonic diffusion in organic or aqueous media.
Attaining consistent diffusion is essential to avoid jumble of SiC, which can function as anxiety concentrators and reduce fracture sturdiness.
Binders and dispersants are added to stabilize suspensions for forming methods such as slip casting, tape casting, or injection molding, relying on the desired part geometry.
Green bodies are after that thoroughly dried out and debound to eliminate organics prior to sintering, a process requiring regulated home heating prices to stay clear of breaking or deforming.
For near-net-shape production, additive techniques like binder jetting or stereolithography are arising, allowing intricate geometries previously unattainable with standard ceramic handling.
These methods need tailored feedstocks with maximized rheology and environment-friendly stamina, commonly entailing polymer-derived porcelains or photosensitive resins packed with composite powders.
2.2 Sintering Systems and Phase Security
Densification of Si Four N FOUR– SiC composites is challenging as a result of the solid covalent bonding and minimal self-diffusion of nitrogen and carbon at practical temperatures.
Liquid-phase sintering making use of rare-earth or alkaline earth oxides (e.g., Y ₂ O FIVE, MgO) reduces the eutectic temperature and enhances mass transportation through a short-term silicate melt.
Under gas pressure (normally 1– 10 MPa N TWO), this melt facilitates rearrangement, solution-precipitation, and last densification while subduing decay of Si three N FOUR.
The existence of SiC influences viscosity and wettability of the fluid stage, potentially changing grain growth anisotropy and final structure.
Post-sintering heat treatments may be put on take shape recurring amorphous phases at grain boundaries, improving high-temperature mechanical residential properties and oxidation resistance.
X-ray diffraction (XRD) and scanning electron microscopy (SEM) are routinely utilized to verify stage purity, lack of undesirable secondary stages (e.g., Si two N TWO O), and uniform microstructure.
3. Mechanical and Thermal Performance Under Tons
3.1 Strength, Strength, and Tiredness Resistance
Si Four N ₄– SiC composites demonstrate exceptional mechanical performance compared to monolithic ceramics, with flexural staminas exceeding 800 MPa and fracture sturdiness values reaching 7– 9 MPa · m ONE/ ².
The reinforcing result of SiC bits impedes misplacement motion and split propagation, while the lengthened Si five N ₄ grains continue to supply toughening through pull-out and linking systems.
This dual-toughening approach causes a material very immune to influence, thermal biking, and mechanical tiredness– essential for rotating components and structural aspects in aerospace and power systems.
Creep resistance remains superb as much as 1300 ° C, credited to the security of the covalent network and lessened grain limit moving when amorphous phases are reduced.
Hardness values typically vary from 16 to 19 Grade point average, providing exceptional wear and disintegration resistance in rough settings such as sand-laden flows or moving get in touches with.
3.2 Thermal Management and Environmental Longevity
The enhancement of SiC dramatically raises the thermal conductivity of the composite, frequently doubling that of pure Si four N FOUR (which ranges from 15– 30 W/(m · K) )to 40– 60 W/(m · K) depending upon SiC web content and microstructure.
This improved heat transfer ability permits more reliable thermal monitoring in components subjected to extreme localized home heating, such as combustion liners or plasma-facing parts.
The composite keeps dimensional security under steep thermal slopes, withstanding spallation and cracking because of matched thermal growth and high thermal shock criterion (R-value).
Oxidation resistance is one more key advantage; SiC creates a safety silica (SiO ₂) layer upon exposure to oxygen at raised temperatures, which even more densifies and secures surface area flaws.
This passive layer protects both SiC and Si ₃ N FOUR (which also oxidizes to SiO ₂ and N ₂), making sure lasting durability in air, vapor, or burning environments.
4. Applications and Future Technical Trajectories
4.1 Aerospace, Power, and Industrial Systems
Si Four N ₄– SiC compounds are progressively released in next-generation gas turbines, where they enable higher running temperatures, improved gas efficiency, and lowered cooling demands.
Parts such as turbine blades, combustor liners, and nozzle overview vanes take advantage of the material’s capacity to stand up to thermal cycling and mechanical loading without substantial deterioration.
In nuclear reactors, especially high-temperature gas-cooled activators (HTGRs), these composites function as fuel cladding or architectural supports due to their neutron irradiation tolerance and fission product retention capability.
In commercial settings, they are utilized in liquified metal handling, kiln furniture, and wear-resistant nozzles and bearings, where standard metals would stop working too soon.
Their light-weight nature (thickness ~ 3.2 g/cm SIX) also makes them eye-catching for aerospace propulsion and hypersonic vehicle parts subject to aerothermal home heating.
4.2 Advanced Manufacturing and Multifunctional Integration
Emerging research study concentrates on establishing functionally graded Si five N ₄– SiC frameworks, where structure differs spatially to maximize thermal, mechanical, or electro-magnetic buildings throughout a single part.
Crossbreed systems including CMC (ceramic matrix composite) designs with fiber reinforcement (e.g., SiC_f/ SiC– Si Two N ₄) press the borders of damage tolerance and strain-to-failure.
Additive production of these compounds makes it possible for topology-optimized heat exchangers, microreactors, and regenerative air conditioning networks with internal lattice structures unachievable by means of machining.
Moreover, their fundamental dielectric homes and thermal stability make them candidates for radar-transparent radomes and antenna home windows in high-speed systems.
As needs grow for products that carry out accurately under severe thermomechanical loads, Si five N ₄– SiC compounds represent a crucial development in ceramic engineering, merging toughness with functionality in a solitary, lasting platform.
In conclusion, silicon nitride– silicon carbide composite ceramics exemplify the power of materials-by-design, leveraging the toughness of two advanced ceramics to produce a hybrid system efficient in prospering in one of the most severe operational environments.
Their continued advancement will play a central function in advancing clean energy, aerospace, and commercial technologies in the 21st century.
