1. The Nanoscale Design and Product Science of Aerogels

1.1 Genesis and Basic Structure of Aerogel Materials

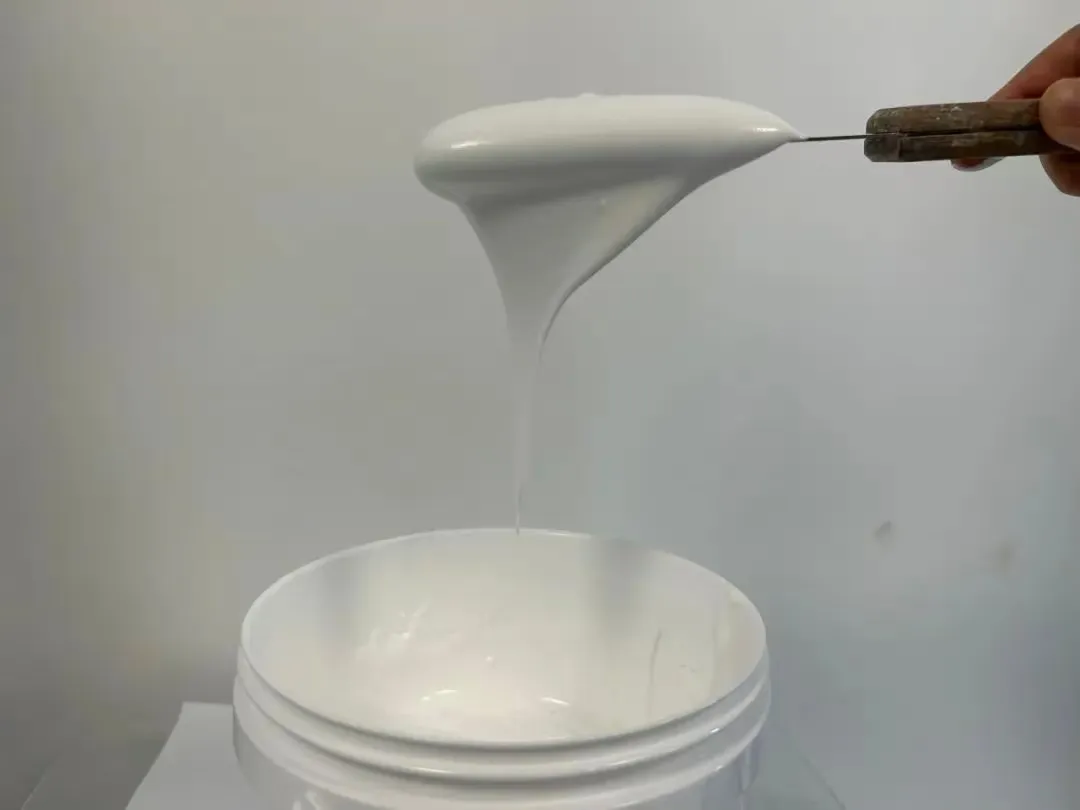

(Aerogel Insulation Coatings)

Aerogel insulation finishes stand for a transformative advancement in thermal monitoring technology, rooted in the unique nanostructure of aerogels– ultra-lightweight, porous products derived from gels in which the fluid element is changed with gas without collapsing the strong network.

First established in the 1930s by Samuel Kistler, aerogels continued to be largely laboratory interests for years as a result of fragility and high production prices.

However, recent advancements in sol-gel chemistry and drying techniques have actually enabled the combination of aerogel bits into flexible, sprayable, and brushable finishing formulations, unlocking their possibility for prevalent industrial application.

The core of aerogel’s extraordinary insulating capability lies in its nanoscale permeable framework: usually made up of silica (SiO â‚‚), the product exhibits porosity exceeding 90%, with pore dimensions predominantly in the 2– 50 nm variety– well below the mean complimentary path of air particles (~ 70 nm at ambient problems).

This nanoconfinement drastically minimizes aeriform thermal conduction, as air molecules can not effectively transfer kinetic energy through accidents within such restricted areas.

At the same time, the solid silica network is engineered to be highly tortuous and discontinuous, minimizing conductive warmth transfer through the strong stage.

The outcome is a product with one of the most affordable thermal conductivities of any type of strong known– usually in between 0.012 and 0.018 W/m · K at room temperature– surpassing conventional insulation materials like mineral wool, polyurethane foam, or increased polystyrene.

1.2 Development from Monolithic Aerogels to Compound Coatings

Early aerogels were created as brittle, monolithic blocks, limiting their usage to particular niche aerospace and scientific applications.

The change toward composite aerogel insulation layers has been driven by the requirement for adaptable, conformal, and scalable thermal obstacles that can be applied to complicated geometries such as pipelines, valves, and uneven tools surface areas.

Modern aerogel layers incorporate finely crushed aerogel granules (usually 1– 10 µm in size) dispersed within polymeric binders such as polymers, silicones, or epoxies.

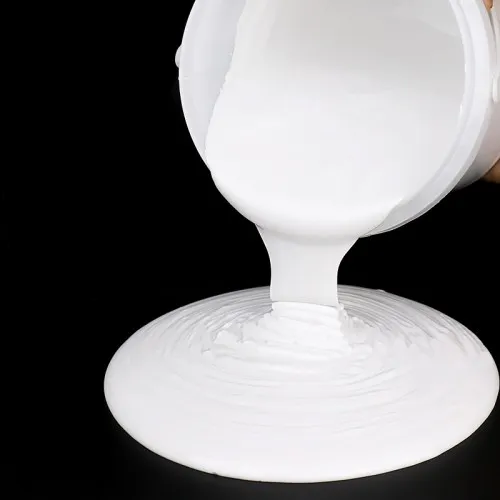

( Aerogel Insulation Coatings)

These hybrid formulations keep much of the inherent thermal efficiency of pure aerogels while gaining mechanical robustness, attachment, and weather condition resistance.

The binder phase, while slightly boosting thermal conductivity, offers essential cohesion and enables application by means of basic industrial techniques including spraying, rolling, or dipping.

Most importantly, the volume fraction of aerogel particles is enhanced to stabilize insulation efficiency with movie honesty– commonly ranging from 40% to 70% by volume in high-performance solutions.

This composite strategy protects the Knudsen effect (the reductions of gas-phase conduction in nanopores) while allowing for tunable residential or commercial properties such as adaptability, water repellency, and fire resistance.

2. Thermal Performance and Multimodal Warmth Transfer Suppression

2.1 Devices of Thermal Insulation at the Nanoscale

Aerogel insulation finishings achieve their remarkable efficiency by concurrently suppressing all 3 modes of warm transfer: conduction, convection, and radiation.

Conductive warm transfer is lessened through the mix of reduced solid-phase connectivity and the nanoporous structure that restrains gas molecule motion.

Since the aerogel network includes incredibly thin, interconnected silica strands (frequently just a few nanometers in size), the path for phonon transport (heat-carrying latticework vibrations) is highly limited.

This structural layout efficiently decouples adjacent regions of the coating, decreasing thermal connecting.

Convective heat transfer is inherently missing within the nanopores due to the lack of ability of air to develop convection currents in such confined rooms.

Also at macroscopic scales, effectively applied aerogel layers eliminate air spaces and convective loops that pester typical insulation systems, especially in upright or overhanging installations.

Radiative warm transfer, which comes to be considerable at raised temperatures (> 100 ° C), is minimized via the unification of infrared opacifiers such as carbon black, titanium dioxide, or ceramic pigments.

These additives enhance the finishing’s opacity to infrared radiation, scattering and soaking up thermal photons prior to they can go across the layer density.

The harmony of these systems leads to a material that offers comparable insulation efficiency at a fraction of the density of standard products– frequently achieving R-values (thermal resistance) numerous times higher per unit density.

2.2 Efficiency Throughout Temperature Level and Environmental Problems

One of the most compelling benefits of aerogel insulation layers is their consistent performance throughout a wide temperature range, generally ranging from cryogenic temperature levels (-200 ° C) to over 600 ° C, depending on the binder system utilized.

At low temperatures, such as in LNG pipes or refrigeration systems, aerogel finishes protect against condensation and decrease heat access more successfully than foam-based options.

At heats, specifically in commercial procedure devices, exhaust systems, or power generation centers, they secure underlying substratums from thermal destruction while decreasing energy loss.

Unlike organic foams that may decay or char, silica-based aerogel finishes remain dimensionally steady and non-combustible, adding to passive fire protection approaches.

Furthermore, their low water absorption and hydrophobic surface area therapies (usually achieved by means of silane functionalization) avoid efficiency destruction in damp or damp settings– an usual failure setting for fibrous insulation.

3. Formula Methods and Useful Integration in Coatings

3.1 Binder Choice and Mechanical Residential Or Commercial Property Design

The selection of binder in aerogel insulation layers is important to balancing thermal efficiency with toughness and application versatility.

Silicone-based binders provide exceptional high-temperature stability and UV resistance, making them appropriate for exterior and industrial applications.

Polymer binders give good adhesion to steels and concrete, along with ease of application and low VOC exhausts, perfect for building envelopes and cooling and heating systems.

Epoxy-modified formulations improve chemical resistance and mechanical toughness, helpful in aquatic or destructive atmospheres.

Formulators also integrate rheology modifiers, dispersants, and cross-linking agents to make sure consistent particle circulation, prevent resolving, and enhance film formation.

Versatility is carefully tuned to stay clear of cracking throughout thermal biking or substratum deformation, especially on vibrant frameworks like expansion joints or vibrating equipment.

3.2 Multifunctional Enhancements and Smart Finishing Possible

Beyond thermal insulation, modern-day aerogel coverings are being engineered with added capabilities.

Some solutions consist of corrosion-inhibiting pigments or self-healing representatives that expand the life expectancy of metal substrates.

Others incorporate phase-change materials (PCMs) within the matrix to provide thermal energy storage, smoothing temperature level changes in buildings or digital units.

Emerging study explores the integration of conductive nanomaterials (e.g., carbon nanotubes) to make it possible for in-situ surveillance of finishing honesty or temperature level circulation– paving the way for “clever” thermal administration systems.

These multifunctional capacities setting aerogel coatings not merely as easy insulators however as energetic elements in smart infrastructure and energy-efficient systems.

4. Industrial and Commercial Applications Driving Market Adoption

4.1 Power Performance in Building and Industrial Sectors

Aerogel insulation coverings are significantly deployed in business structures, refineries, and nuclear power plant to minimize energy consumption and carbon exhausts.

Applied to heavy steam lines, boilers, and heat exchangers, they substantially reduced heat loss, enhancing system efficiency and lowering gas demand.

In retrofit situations, their slim account allows insulation to be included without significant structural alterations, maintaining room and reducing downtime.

In domestic and commercial building, aerogel-enhanced paints and plasters are made use of on wall surfaces, roofing systems, and windows to enhance thermal convenience and decrease HVAC loads.

4.2 Specific Niche and High-Performance Applications

The aerospace, automobile, and electronics markets utilize aerogel layers for weight-sensitive and space-constrained thermal monitoring.

In electrical automobiles, they safeguard battery loads from thermal runaway and exterior heat resources.

In electronic devices, ultra-thin aerogel layers shield high-power parts and avoid hotspots.

Their use in cryogenic storage, room environments, and deep-sea devices underscores their dependability in severe atmospheres.

As making scales and expenses decline, aerogel insulation finishes are poised to end up being a keystone of next-generation sustainable and durable infrastructure.
