1. Crystal Structure and Bonding Nature of Ti Two AlC
1.1 The MAX Stage Family Members and Atomic Piling Sequence

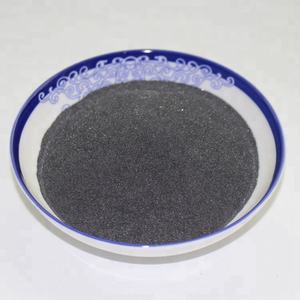

(Ti2AlC MAX Phase Powder)
Ti â‚‚ AlC comes from the MAX phase family, a class of nanolaminated ternary carbides and nitrides with the general formula Mâ‚™ â‚Šâ‚ AXâ‚™, where M is an early change metal, A is an A-group aspect, and X is carbon or nitrogen.
In Ti â‚‚ AlC, titanium (Ti) functions as the M component, light weight aluminum (Al) as the An element, and carbon (C) as the X component, forming a 211 structure (n=1) with rotating layers of Ti six C octahedra and Al atoms stacked along the c-axis in a hexagonal lattice.
This special split design incorporates strong covalent bonds within the Ti– C layers with weak metal bonds between the Ti and Al airplanes, resulting in a hybrid product that displays both ceramic and metallic attributes.
The robust Ti– C covalent network gives high tightness, thermal security, and oxidation resistance, while the metallic Ti– Al bonding makes it possible for electric conductivity, thermal shock resistance, and damages tolerance unusual in standard ceramics.
This duality occurs from the anisotropic nature of chemical bonding, which enables power dissipation devices such as kink-band development, delamination, and basic airplane cracking under stress, rather than disastrous brittle fracture.
1.2 Electronic Framework and Anisotropic Qualities
The electronic configuration of Ti two AlC includes overlapping d-orbitals from titanium and p-orbitals from carbon and aluminum, causing a high density of states at the Fermi level and intrinsic electric and thermal conductivity along the basal planes.
This metallic conductivity– unusual in ceramic materials– allows applications in high-temperature electrodes, existing collection agencies, and electromagnetic securing.
Building anisotropy is pronounced: thermal growth, elastic modulus, and electric resistivity vary dramatically in between the a-axis (in-plane) and c-axis (out-of-plane) directions as a result of the split bonding.
As an example, thermal growth along the c-axis is less than along the a-axis, contributing to boosted resistance to thermal shock.
Furthermore, the material displays a low Vickers solidity (~ 4– 6 Grade point average) compared to conventional ceramics like alumina or silicon carbide, yet keeps a high Youthful’s modulus (~ 320 Grade point average), showing its unique mix of gentleness and rigidity.
This balance makes Ti â‚‚ AlC powder especially appropriate for machinable ceramics and self-lubricating composites.
( Ti2AlC MAX Phase Powder)
2. Synthesis and Handling of Ti Two AlC Powder
2.1 Solid-State and Advanced Powder Manufacturing Approaches
Ti two AlC powder is mainly manufactured via solid-state reactions between important or compound forerunners, such as titanium, aluminum, and carbon, under high-temperature problems (1200– 1500 ° C )in inert or vacuum cleaner environments.
The response: 2Ti + Al + C → Ti two AlC, should be carefully controlled to avoid the development of contending phases like TiC, Ti Two Al, or TiAl, which break down practical efficiency.
Mechanical alloying complied with by warm therapy is one more widely utilized approach, where elemental powders are ball-milled to attain atomic-level blending prior to annealing to form limit stage.
This technique enables fine fragment size control and homogeneity, essential for advanced combination techniques.
Extra advanced approaches, such as trigger plasma sintering (SPS), chemical vapor deposition (CVD), and molten salt synthesis, deal routes to phase-pure, nanostructured, or oriented Ti two AlC powders with customized morphologies.
Molten salt synthesis, particularly, permits lower reaction temperature levels and far better fragment diffusion by functioning as a flux medium that boosts diffusion kinetics.
2.2 Powder Morphology, Pureness, and Handling Considerations
The morphology of Ti two AlC powder– ranging from uneven angular particles to platelet-like or spherical granules– depends on the synthesis path and post-processing actions such as milling or category.
Platelet-shaped bits mirror the intrinsic split crystal framework and are advantageous for reinforcing composites or producing distinctive mass products.
High stage pureness is crucial; also small amounts of TiC or Al two O five impurities can significantly change mechanical, electrical, and oxidation habits.
X-ray diffraction (XRD) and electron microscopy (SEM/TEM) are routinely utilized to assess phase make-up and microstructure.
Because of aluminum’s sensitivity with oxygen, Ti â‚‚ AlC powder is susceptible to surface oxidation, developing a slim Al two O ₃ layer that can passivate the product but may impede sintering or interfacial bonding in compounds.
Consequently, storage under inert atmosphere and processing in controlled environments are necessary to maintain powder honesty.
3. Useful Behavior and Efficiency Mechanisms
3.1 Mechanical Durability and Damages Tolerance
One of one of the most exceptional attributes of Ti two AlC is its ability to hold up against mechanical damage without fracturing catastrophically, a residential or commercial property called “damages tolerance” or “machinability” in porcelains.
Under lots, the material accommodates tension through mechanisms such as microcracking, basic aircraft delamination, and grain boundary sliding, which dissipate power and prevent crack breeding.
This actions contrasts sharply with standard porcelains, which commonly stop working instantly upon reaching their flexible limitation.
Ti â‚‚ AlC components can be machined making use of conventional devices without pre-sintering, an uncommon capability among high-temperature ceramics, reducing production expenses and making it possible for complicated geometries.
Additionally, it displays excellent thermal shock resistance as a result of low thermal growth and high thermal conductivity, making it suitable for components subjected to rapid temperature changes.
3.2 Oxidation Resistance and High-Temperature Security
At elevated temperatures (as much as 1400 ° C in air), Ti ₂ AlC forms a protective alumina (Al two O FIVE) range on its surface area, which acts as a diffusion obstacle against oxygen access, substantially reducing further oxidation.
This self-passivating actions is similar to that seen in alumina-forming alloys and is crucial for long-term security in aerospace and power applications.
However, above 1400 ° C, the formation of non-protective TiO two and internal oxidation of light weight aluminum can cause accelerated destruction, limiting ultra-high-temperature use.
In lowering or inert settings, Ti two AlC maintains structural honesty approximately 2000 ° C, demonstrating exceptional refractory attributes.
Its resistance to neutron irradiation and reduced atomic number additionally make it a prospect product for nuclear combination activator components.
4. Applications and Future Technical Combination
4.1 High-Temperature and Architectural Elements
Ti â‚‚ AlC powder is used to produce mass ceramics and finishings for extreme atmospheres, consisting of turbine blades, heating elements, and heating system parts where oxidation resistance and thermal shock tolerance are critical.
Hot-pressed or spark plasma sintered Ti â‚‚ AlC shows high flexural strength and creep resistance, surpassing numerous monolithic ceramics in cyclic thermal loading circumstances.
As a finish product, it shields metal substratums from oxidation and use in aerospace and power generation systems.
Its machinability allows for in-service repair work and accuracy ending up, a considerable benefit over brittle porcelains that need ruby grinding.
4.2 Functional and Multifunctional Product Equipments
Beyond structural roles, Ti two AlC is being discovered in practical applications leveraging its electrical conductivity and split structure.
It acts as a forerunner for manufacturing two-dimensional MXenes (e.g., Ti three C TWO Tâ‚“) using selective etching of the Al layer, making it possible for applications in energy storage space, sensing units, and electro-magnetic interference securing.
In composite materials, Ti two AlC powder enhances the strength and thermal conductivity of ceramic matrix composites (CMCs) and metal matrix compounds (MMCs).
Its lubricious nature under high temperature– due to easy basal airplane shear– makes it appropriate for self-lubricating bearings and sliding components in aerospace mechanisms.
Arising research study focuses on 3D printing of Ti â‚‚ AlC-based inks for net-shape production of intricate ceramic components, pressing the boundaries of additive manufacturing in refractory materials.
In recap, Ti two AlC MAX stage powder stands for a standard change in ceramic materials scientific research, bridging the space in between metals and ceramics with its layered atomic architecture and crossbreed bonding.
Its special mix of machinability, thermal security, oxidation resistance, and electric conductivity makes it possible for next-generation elements for aerospace, power, and progressed manufacturing.
As synthesis and handling technologies grow, Ti â‚‚ AlC will certainly play an increasingly crucial duty in design materials designed for extreme and multifunctional atmospheres.
