1. Introduction to Oil Immersed Transformers
In the elaborate internet of our contemporary electric grid, transformers play an essential duty, silently tipping voltage up and down to guarantee electrical energy can be sent successfully over long distances and dispersed securely to our homes and markets. Among the numerous types available, the oil submersed transformer stands as a testimony to tested reliability and sturdiness. For decades, these workhorses have actually developed the backbone of power systems worldwide.
An oil submersed transformer is a kind of electric transformer that uses a specific insulating oil as both a coolant and a shielding medium. This design is mostly utilized for medium to high-power applications, making it a cornerstone of electrical facilities. This guide digs deep right into the globe of oil immersed power transformers and oil submersed distribution transformers, discovering their modern technology, applications, and their evolving duty in an era of digitalization and renewable resource.
1.1 What is an Oil Immersed Transformer?
At its core, an oil submersed transformer includes a magnetic core and copper or aluminum windings housed inside a sealed tank filled with protecting oil. The primary feature of the oil is twofold:
1. Insulation: The oil has high dielectric stamina, effectively insulating the high-voltage windings from the transformer’s core and based storage tank. This avoids brief circuits and electric failures.
2. Cooling: As the transformer operates, the windings generate significant heat as a result of I ² R losses. The distributing oil absorbs this warm, convects it to the transformer’s tank wall surfaces, and dissipates it right into the surrounding air. Bigger systems usually feature radiators or fins to boost the surface for a lot more efficient air conditioning.
This dual-purpose use of oil makes the oil submersed transformer exceptionally reliable and durable, with the ability of dealing with high tons and enduring transient overloads better than lots of dry-type options.
1.2 Oil Immersed Power Transformer vs. Oil Immersed Distribution Transformer
While all these units are oil immersed transformers, they offer distinctive functions within the power system network. Comprehending the distinction is important.
An oil submersed power transformer is a heavyweight, commonly used in transmission networks at producing stations and major substations. Their primary function is to “step-up” the voltage created at the nuclear power plant to incredibly high levels (e.g., 138 kV, 230 kV, 500 kV and over) for effective long-distance transmission, and to “step-down” the voltage at getting substations for more circulation. They are identified by their very high power rankings (typically going beyond 100 MVA), intricate construction, and on-load faucet changers for voltage guideline.
An oil involved distribution transformer, on the other hand, performs the last step in the power delivery chain. It takes the tool voltage from the transmission lines (e.g., 11 kV, 33 kV) and steps it down to the low voltages (e.g., 400/230 V) used by commercial and residential consumers. You typically locate them on utility poles (pole-mounted) or on ground-level pads (pad-mounted). They are smaller, have reduced power ratings (commonly up to 2,500 kVA), and are made for optimal efficiency at lower, a lot more continuous loads.

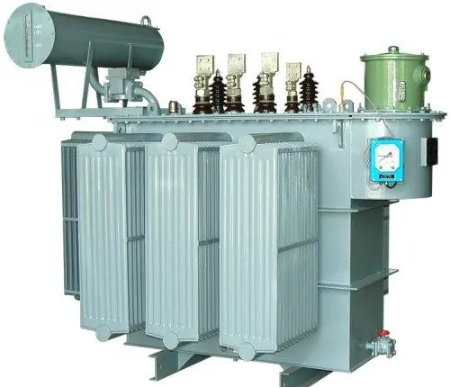

(Oil immersed power transformer)
2. Key Benefits of Oil Submersed Transformers
The long-lasting appeal of the oil submersed transformer is not unintended. It provides a collection of engaging benefits that make it the preferred option for many demanding applications.
2.1 Superior Air Conditioning and Overload Capacity
The remarkable thermal ability of oil contrasted to air enables an oil submersed power transformer to take care of and dissipate heat far more properly. This converts to a greater overload ability. Throughout durations of optimal electricity demand, an oil submersed transformer can deal with short-lived overloads without sustaining damages, an important function for maintaining grid security. The oil’s blood circulation makes sure also warmth circulation, avoiding localized hot spots that can deteriorate insulation in time.
2.2 Enhanced Insulation and Long Life Span
The mix of top quality mineral oil and meticulously fertilized paper insulation produces a dielectric system of extraordinary toughness. This robust insulation system shields the transformer from voltage surges and transients, adding to an operational life expectancy that can include 30-40 years or even more with correct maintenance. The secured storage tank also safeguards the inner elements from dampness, dirt, and other atmospheric impurities.
2.3 High Effectiveness and Cost-Effectiveness
For high-power applications, the oil immersed transformer is often the most economical selection. The products used– mineral oil, steel container, and copper/aluminum windings– supply a desirable balance of efficiency and expense. The high performance of these transformers, specifically at their rated tons, causes reduced power losses over their life time, resulting in considerable cost financial savings for energy firms and huge commercial customers.
3. Warm Subjects and Future Trends
The world of oil submersed transformers is not static. It is continuously evolving to fulfill brand-new obstacles and integrate with contemporary innovations.
3.1 Naturally Degradable and Fireproof Oils
Environmental and safety and security worries are driving a significant shift away from traditional mineral oil. The market is swiftly adopting oil immersed transformers loaded with eco-friendly esters (synthetic or all-natural). These oils supply a higher fire factor (making them K-class fireproof), are much less toxic, and are conveniently eco-friendly, significantly minimizing the environmental impact in situation of a leak. This pattern is making oil immersed circulation transformers much safer for setup in metropolitan locations and eco sensitive places.
3.2 Assimilation with Smart Grids and IoT
The modern oil engaged power transformer is becoming an intelligent node in the wise grid. Sensors are being incorporated to check crucial parameters in real-time, including:
Dissolved Gas Evaluation (DGA): Discovering fault gases generated within the oil to predict incipient mistakes.
Temperature Tracking: Tracking top-oil and hotspot temperatures.
Load and Power Quality Surveillance.
This data, transferred via IoT (Internet of Points) platforms, allows predictive upkeep, avoids unexpected interruptions, and enhances transformer use and lifespan.
3.3 Supporting the Renewable Resource Shift
The worldwide push for renewables is creating new need for oil immersed transformers. Large solar ranches and wind power installations call for durable oil submersed power transformers to tip up the generated voltage to transmission degrees. In addition, the intermittent nature of renewables places higher tension on grid parts, and the proven integrity and overload capacity of oil immersed transformers make them optimal for this vital role.
4. Selection and Upkeep Ideal Practices
Picking the best transformer and preserving it effectively is crucial to a trusted power system.
4.1 How to Select the Right Oil Immersed Transformer
Choosing between an oil submersed power transformer and an oil immersed distribution transformer depends on the application. Key considerations consist of:
1. Voltage Degree and kVA Score: Suit the transformer’s specs to your system’s needs.
2. Application: Transmission substation, industrial plant, or industrial distribution.
3. Area: Indoor vs. exterior, ecological conditions, and fire safety and security policies (which may affect the selection of insulating oil).
4. Effectiveness Criteria: Adhere to regional efficiency requirements like DOE (USA) or EU CoC (Europe).
5. Budget plan: Take into consideration both the initial resources price and the complete cost of possession, consisting of losses.
(Oil immersed distribution transformer)
4.2 Crucial Upkeep for Durability
Aggressive maintenance is vital for any kind of oil immersed transformer. A thorough program should consist of:
1. Routine Oil Sampling and Testing: Periodic DGA and screening of dielectric strength and moisture content are one of the most effective methods to examine the health and wellness of the transformer.
2. Bushing and Insulation Evaluation: Visual look for cracks, contamination, or leaks.
3. Tap Changer Maintenance: Regular evaluation and servicing of on-load or off-load faucet changers.
4. Keep it Tidy and Dry: Ensuring the tank outside, radiators, and breathers are tidy and practical.
The oil submersed transformer, in its functions as both a high-capacity oil submersed power transformer and a common oil submersed circulation transformer, stays an irreplaceable component of our global energy facilities. Its proven design, coupled with recurring advancements in shielding liquids and digital monitoring, ensures it will continue to be a reputable, effective, and intelligent service for powering our world for decades to find. As we develop the grids of the future, incorporating more renewables and electronic knowledge, the robust and adaptable oil immersed transformer will certainly be at the heart of it.
