1. Product Fundamentals and Morphological Advantages
1.1 Crystal Framework and Chemical Make-up

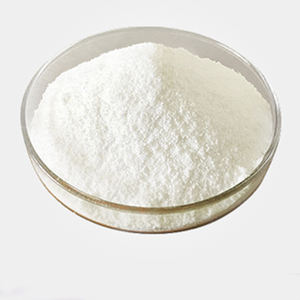

(Spherical alumina)
Round alumina, or round aluminum oxide (Al ₂ O TWO), is an artificially created ceramic material characterized by a distinct globular morphology and a crystalline framework predominantly in the alpha (α) phase.
Alpha-alumina, the most thermodynamically steady polymorph, includes a hexagonal close-packed plan of oxygen ions with light weight aluminum ions occupying two-thirds of the octahedral interstices, leading to high lattice energy and extraordinary chemical inertness.
This stage displays superior thermal stability, preserving integrity up to 1800 ° C, and resists reaction with acids, antacid, and molten steels under most commercial conditions.
Unlike uneven or angular alumina powders originated from bauxite calcination, round alumina is crafted with high-temperature processes such as plasma spheroidization or fire synthesis to attain uniform satiation and smooth surface texture.
The transformation from angular forerunner bits– usually calcined bauxite or gibbsite– to dense, isotropic rounds eliminates sharp edges and interior porosity, boosting packaging performance and mechanical resilience.
High-purity qualities (≥ 99.5% Al Two O TWO) are crucial for electronic and semiconductor applications where ionic contamination must be minimized.
1.2 Bit Geometry and Packing Habits
The defining feature of round alumina is its near-perfect sphericity, commonly evaluated by a sphericity index > 0.9, which considerably influences its flowability and packaging thickness in composite systems.
Unlike angular bits that interlock and create spaces, spherical fragments roll past one another with very little friction, making it possible for high solids packing throughout formulation of thermal interface products (TIMs), encapsulants, and potting compounds.
This geometric uniformity allows for optimum academic packing densities surpassing 70 vol%, far exceeding the 50– 60 vol% normal of uneven fillers.
Greater filler packing directly converts to enhanced thermal conductivity in polymer matrices, as the constant ceramic network offers efficient phonon transport pathways.
In addition, the smooth surface area minimizes endure handling equipment and minimizes thickness rise during mixing, boosting processability and dispersion security.
The isotropic nature of rounds also protects against orientation-dependent anisotropy in thermal and mechanical residential or commercial properties, ensuring regular performance in all directions.
2. Synthesis Approaches and Quality Control
2.1 High-Temperature Spheroidization Techniques
The manufacturing of round alumina mainly relies upon thermal techniques that thaw angular alumina fragments and permit surface area tension to reshape them into rounds.
( Spherical alumina)
Plasma spheroidization is the most widely used commercial technique, where alumina powder is infused into a high-temperature plasma flame (up to 10,000 K), triggering immediate melting and surface area tension-driven densification into perfect spheres.
The liquified droplets strengthen rapidly throughout trip, developing dense, non-porous fragments with uniform dimension distribution when paired with accurate category.
Alternate techniques include flame spheroidization making use of oxy-fuel lanterns and microwave-assisted heating, though these generally provide reduced throughput or less control over bit dimension.
The beginning material’s purity and bit dimension circulation are important; submicron or micron-scale precursors produce similarly sized spheres after processing.
Post-synthesis, the product goes through extensive sieving, electrostatic separation, and laser diffraction analysis to guarantee limited particle dimension distribution (PSD), typically ranging from 1 to 50 µm depending on application.
2.2 Surface Area Modification and Practical Tailoring
To enhance compatibility with natural matrices such as silicones, epoxies, and polyurethanes, spherical alumina is frequently surface-treated with combining representatives.
Silane combining representatives– such as amino, epoxy, or plastic practical silanes– type covalent bonds with hydroxyl teams on the alumina surface while giving organic performance that interacts with the polymer matrix.
This treatment boosts interfacial adhesion, decreases filler-matrix thermal resistance, and avoids jumble, bring about more homogeneous composites with superior mechanical and thermal performance.
Surface area layers can likewise be engineered to present hydrophobicity, enhance diffusion in nonpolar materials, or make it possible for stimuli-responsive behavior in wise thermal products.
Quality assurance consists of dimensions of wager area, tap thickness, thermal conductivity (typically 25– 35 W/(m · K )for dense α-alumina), and contamination profiling via ICP-MS to leave out Fe, Na, and K at ppm degrees.
Batch-to-batch uniformity is crucial for high-reliability applications in electronics and aerospace.
3. Thermal and Mechanical Efficiency in Composites
3.1 Thermal Conductivity and User Interface Design
Spherical alumina is largely used as a high-performance filler to enhance the thermal conductivity of polymer-based materials made use of in digital packaging, LED illumination, and power components.
While pure epoxy or silicone has a thermal conductivity of ~ 0.2 W/(m · K), filling with 60– 70 vol% spherical alumina can increase this to 2– 5 W/(m · K), enough for reliable warmth dissipation in small devices.
The high inherent thermal conductivity of α-alumina, integrated with very little phonon scattering at smooth particle-particle and particle-matrix interfaces, makes it possible for reliable heat transfer with percolation networks.
Interfacial thermal resistance (Kapitza resistance) remains a restricting element, however surface functionalization and optimized dispersion strategies assist reduce this obstacle.
In thermal user interface products (TIMs), spherical alumina reduces call resistance between heat-generating parts (e.g., CPUs, IGBTs) and warmth sinks, avoiding getting too hot and prolonging tool lifespan.
Its electric insulation (resistivity > 10 ¹² Ω · centimeters) ensures security in high-voltage applications, distinguishing it from conductive fillers like metal or graphite.
3.2 Mechanical Security and Reliability
Beyond thermal performance, spherical alumina boosts the mechanical robustness of composites by enhancing firmness, modulus, and dimensional security.
The round shape disperses stress and anxiety consistently, lowering split initiation and proliferation under thermal biking or mechanical load.
This is especially crucial in underfill materials and encapsulants for flip-chip and 3D-packaged gadgets, where coefficient of thermal growth (CTE) mismatch can generate delamination.
By adjusting filler loading and particle size distribution (e.g., bimodal blends), the CTE of the composite can be tuned to match that of silicon or published motherboard, lessening thermo-mechanical stress and anxiety.
In addition, the chemical inertness of alumina protects against deterioration in moist or corrosive environments, making certain long-lasting integrity in auto, industrial, and exterior electronics.
4. Applications and Technological Evolution
4.1 Electronic Devices and Electric Automobile Systems
Spherical alumina is a crucial enabler in the thermal management of high-power electronics, consisting of shielded entrance bipolar transistors (IGBTs), power supplies, and battery monitoring systems in electrical lorries (EVs).
In EV battery loads, it is included right into potting substances and phase modification materials to stop thermal runaway by equally distributing warm across cells.
LED makers utilize it in encapsulants and additional optics to keep lumen result and shade uniformity by reducing joint temperature.
In 5G facilities and data centers, where heat change densities are rising, spherical alumina-filled TIMs make certain secure procedure of high-frequency chips and laser diodes.
Its duty is broadening right into innovative product packaging technologies such as fan-out wafer-level product packaging (FOWLP) and embedded die systems.
4.2 Arising Frontiers and Sustainable Advancement
Future developments concentrate on hybrid filler systems combining round alumina with boron nitride, light weight aluminum nitride, or graphene to attain synergistic thermal performance while keeping electrical insulation.
Nano-spherical alumina (sub-100 nm) is being discovered for transparent porcelains, UV coverings, and biomedical applications, though challenges in diffusion and price remain.
Additive manufacturing of thermally conductive polymer compounds utilizing round alumina makes it possible for complex, topology-optimized warmth dissipation frameworks.
Sustainability efforts include energy-efficient spheroidization processes, recycling of off-spec material, and life-cycle analysis to reduce the carbon footprint of high-performance thermal products.
In summary, round alumina represents an essential crafted material at the junction of porcelains, compounds, and thermal science.
Its distinct mix of morphology, purity, and efficiency makes it crucial in the recurring miniaturization and power aggravation of modern-day digital and energy systems.
