1. Product Principles and Crystal Chemistry
1.1 Structure and Polymorphic Framework
(Silicon Carbide Ceramics)
Silicon carbide (SiC) is a covalent ceramic compound composed of silicon and carbon atoms in a 1:1 stoichiometric proportion, renowned for its outstanding hardness, thermal conductivity, and chemical inertness.
It exists in over 250 polytypes– crystal structures varying in stacking series– among which 3C-SiC (cubic), 4H-SiC, and 6H-SiC (hexagonal) are one of the most technologically pertinent.
The solid directional covalent bonds (Si– C bond power ~ 318 kJ/mol) lead to a high melting factor (~ 2700 ° C), reduced thermal development (~ 4.0 × 10 ⁻⁶/ K), and outstanding resistance to thermal shock.
Unlike oxide ceramics such as alumina, SiC does not have an indigenous glassy stage, adding to its stability in oxidizing and corrosive ambiences up to 1600 ° C.
Its large bandgap (2.3– 3.3 eV, relying on polytype) additionally grants it with semiconductor homes, allowing dual usage in architectural and electronic applications.
1.2 Sintering Obstacles and Densification Strategies
Pure SiC is extremely hard to densify due to its covalent bonding and reduced self-diffusion coefficients, requiring the use of sintering aids or advanced processing strategies.
Reaction-bonded SiC (RB-SiC) is created by infiltrating permeable carbon preforms with liquified silicon, creating SiC in situ; this approach returns near-net-shape elements with residual silicon (5– 20%).
Solid-state sintered SiC (SSiC) makes use of boron and carbon ingredients to advertise densification at ~ 2000– 2200 ° C under inert environment, accomplishing > 99% academic thickness and superior mechanical residential properties.
Liquid-phase sintered SiC (LPS-SiC) utilizes oxide ingredients such as Al ₂ O SIX– Y TWO O FOUR, developing a short-term liquid that improves diffusion yet may decrease high-temperature strength as a result of grain-boundary stages.
Hot pressing and spark plasma sintering (SPS) offer fast, pressure-assisted densification with fine microstructures, perfect for high-performance components requiring marginal grain development.
2. Mechanical and Thermal Efficiency Characteristics
2.1 Strength, Firmness, and Use Resistance
Silicon carbide ceramics show Vickers solidity worths of 25– 30 Grade point average, second only to ruby and cubic boron nitride amongst design materials.
Their flexural toughness usually varies from 300 to 600 MPa, with crack toughness (K_IC) of 3– 5 MPa · m 1ST/ TWO– moderate for porcelains however enhanced through microstructural engineering such as hair or fiber support.
The mix of high hardness and elastic modulus (~ 410 GPa) makes SiC remarkably resistant to abrasive and erosive wear, outshining tungsten carbide and set steel in slurry and particle-laden atmospheres.
( Silicon Carbide Ceramics)
In industrial applications such as pump seals, nozzles, and grinding media, SiC elements show service lives numerous times much longer than traditional alternatives.
Its reduced thickness (~ 3.1 g/cm ³) additional adds to put on resistance by decreasing inertial forces in high-speed turning components.
2.2 Thermal Conductivity and Stability
Among SiC’s most distinguishing functions is its high thermal conductivity– varying from 80 to 120 W/(m · K )for polycrystalline types, and up to 490 W/(m · K) for single-crystal 4H-SiC– exceeding most metals other than copper and aluminum.
This home enables effective heat dissipation in high-power digital substratums, brake discs, and warm exchanger elements.
Combined with reduced thermal growth, SiC displays exceptional thermal shock resistance, measured by the R-parameter (σ(1– ν)k/ αE), where high worths show resilience to quick temperature modifications.

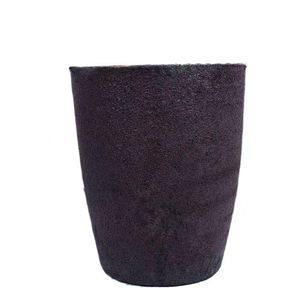

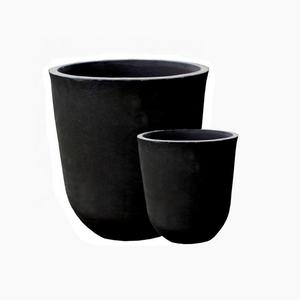

For example, SiC crucibles can be heated from room temperature level to 1400 ° C in mins without splitting, an accomplishment unattainable for alumina or zirconia in similar problems.
In addition, SiC preserves stamina approximately 1400 ° C in inert environments, making it ideal for furnace fixtures, kiln furnishings, and aerospace elements revealed to extreme thermal cycles.
3. Chemical Inertness and Rust Resistance
3.1 Habits in Oxidizing and Lowering Atmospheres
At temperature levels listed below 800 ° C, SiC is extremely stable in both oxidizing and decreasing environments.
Over 800 ° C in air, a protective silica (SiO ₂) layer types on the surface area by means of oxidation (SiC + 3/2 O ₂ → SiO ₂ + CARBON MONOXIDE), which passivates the material and reduces more degradation.
Nevertheless, in water vapor-rich or high-velocity gas streams above 1200 ° C, this silica layer can volatilize as Si(OH)FOUR, resulting in increased economic crisis– an essential factor to consider in wind turbine and burning applications.
In minimizing environments or inert gases, SiC stays steady approximately its decay temperature level (~ 2700 ° C), without stage modifications or strength loss.
This stability makes it appropriate for liquified steel handling, such as aluminum or zinc crucibles, where it resists wetting and chemical attack far better than graphite or oxides.
3.2 Resistance to Acids, Alkalis, and Molten Salts
Silicon carbide is practically inert to all acids except hydrofluoric acid (HF) and solid oxidizing acid combinations (e.g., HF– HNO SIX).
It reveals excellent resistance to alkalis up to 800 ° C, though extended exposure to molten NaOH or KOH can create surface etching by means of development of soluble silicates.
In liquified salt atmospheres– such as those in focused solar power (CSP) or nuclear reactors– SiC shows premium rust resistance compared to nickel-based superalloys.
This chemical effectiveness underpins its use in chemical procedure devices, including valves, linings, and warm exchanger tubes taking care of aggressive media like chlorine, sulfuric acid, or salt water.
4. Industrial Applications and Emerging Frontiers
4.1 Established Utilizes in Energy, Defense, and Manufacturing
Silicon carbide ceramics are important to numerous high-value commercial systems.
In the energy industry, they act as wear-resistant liners in coal gasifiers, components in nuclear fuel cladding (SiC/SiC composites), and substrates for high-temperature solid oxide gas cells (SOFCs).
Protection applications include ballistic shield plates, where SiC’s high hardness-to-density ratio provides premium protection versus high-velocity projectiles compared to alumina or boron carbide at reduced expense.
In production, SiC is used for precision bearings, semiconductor wafer handling parts, and rough blasting nozzles due to its dimensional stability and pureness.
Its usage in electric automobile (EV) inverters as a semiconductor substratum is rapidly growing, driven by performance gains from wide-bandgap electronics.
4.2 Next-Generation Dopes and Sustainability
Recurring research study focuses on SiC fiber-reinforced SiC matrix compounds (SiC/SiC), which show pseudo-ductile actions, improved toughness, and retained stamina over 1200 ° C– suitable for jet engines and hypersonic automobile leading edges.
Additive production of SiC using binder jetting or stereolithography is progressing, enabling intricate geometries formerly unattainable via traditional developing techniques.
From a sustainability viewpoint, SiC’s long life reduces replacement regularity and lifecycle exhausts in commercial systems.
Recycling of SiC scrap from wafer cutting or grinding is being created with thermal and chemical recovery procedures to reclaim high-purity SiC powder.
As markets press toward higher efficiency, electrification, and extreme-environment operation, silicon carbide-based ceramics will certainly stay at the forefront of advanced products design, connecting the void in between architectural durability and functional flexibility.
