1. Basics of Silica Sol Chemistry and Colloidal Security
1.1 Composition and Particle Morphology

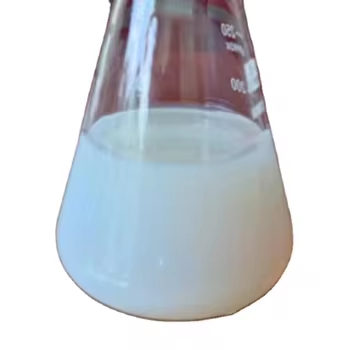

(Silica Sol)
Silica sol is a secure colloidal dispersion containing amorphous silicon dioxide (SiO â‚‚) nanoparticles, usually ranging from 5 to 100 nanometers in size, put on hold in a fluid stage– most typically water.
These nanoparticles are composed of a three-dimensional network of SiO four tetrahedra, forming a porous and highly responsive surface abundant in silanol (Si– OH) groups that regulate interfacial actions.
The sol state is thermodynamically metastable, maintained by electrostatic repulsion between charged bits; surface cost occurs from the ionization of silanol groups, which deprotonate over pH ~ 2– 3, yielding negatively billed bits that drive away one another.
Bit form is usually round, though synthesis conditions can affect aggregation propensities and short-range purchasing.
The high surface-area-to-volume proportion– usually exceeding 100 m ²/ g– makes silica sol incredibly reactive, enabling solid interactions with polymers, steels, and organic molecules.
1.2 Stablizing Devices and Gelation Transition
Colloidal stability in silica sol is mostly regulated by the balance in between van der Waals appealing forces and electrostatic repulsion, explained by the DLVO (Derjaguin– Landau– Verwey– Overbeek) concept.
At low ionic stamina and pH worths over the isoelectric factor (~ pH 2), the zeta potential of bits is sufficiently adverse to avoid gathering.
Nevertheless, enhancement of electrolytes, pH adjustment towards neutrality, or solvent evaporation can evaluate surface costs, lower repulsion, and cause fragment coalescence, causing gelation.
Gelation involves the development of a three-dimensional network with siloxane (Si– O– Si) bond development in between adjacent bits, transforming the liquid sol right into a stiff, permeable xerogel upon drying.
This sol-gel shift is reversible in some systems but generally causes permanent architectural modifications, developing the basis for advanced ceramic and composite construction.
2. Synthesis Paths and Refine Control
( Silica Sol)
2.1 Stöber Approach and Controlled Growth
The most widely acknowledged method for generating monodisperse silica sol is the Sțber procedure, established in 1968, which involves the hydrolysis and condensation of alkoxysilanesРgenerally tetraethyl orthosilicate (TEOS)Рin an alcoholic tool with aqueous ammonia as a stimulant.
By exactly regulating parameters such as water-to-TEOS ratio, ammonia concentration, solvent composition, and reaction temperature, particle size can be tuned reproducibly from ~ 10 nm to over 1 µm with narrow dimension distribution.
The system continues via nucleation adhered to by diffusion-limited development, where silanol groups condense to create siloxane bonds, developing the silica framework.
This technique is excellent for applications calling for consistent spherical bits, such as chromatographic assistances, calibration standards, and photonic crystals.
2.2 Acid-Catalyzed and Biological Synthesis Courses
Alternate synthesis approaches consist of acid-catalyzed hydrolysis, which favors direct condensation and causes more polydisperse or aggregated fragments, frequently made use of in commercial binders and coatings.
Acidic conditions (pH 1– 3) promote slower hydrolysis yet faster condensation between protonated silanols, resulting in irregular or chain-like structures.
A lot more just recently, bio-inspired and environment-friendly synthesis techniques have arised, using silicatein enzymes or plant essences to precipitate silica under ambient conditions, minimizing power intake and chemical waste.
These sustainable techniques are acquiring interest for biomedical and ecological applications where purity and biocompatibility are critical.
Additionally, industrial-grade silica sol is frequently generated by means of ion-exchange procedures from sodium silicate services, adhered to by electrodialysis to remove alkali ions and support the colloid.
3. Practical Characteristics and Interfacial Behavior
3.1 Surface Area Sensitivity and Alteration Techniques
The surface area of silica nanoparticles in sol is dominated by silanol teams, which can participate in hydrogen bonding, adsorption, and covalent grafting with organosilanes.
Surface modification using coupling agents such as 3-aminopropyltriethoxysilane (APTES) or methyltrimethoxysilane presents functional teams (e.g.,– NH â‚‚,– CH FOUR) that change hydrophilicity, reactivity, and compatibility with natural matrices.
These modifications enable silica sol to work as a compatibilizer in crossbreed organic-inorganic composites, enhancing diffusion in polymers and improving mechanical, thermal, or obstacle residential properties.
Unmodified silica sol displays solid hydrophilicity, making it perfect for aqueous systems, while changed variants can be spread in nonpolar solvents for specialized layers and inks.
3.2 Rheological and Optical Characteristics
Silica sol diffusions normally exhibit Newtonian flow habits at low concentrations, however thickness rises with bit loading and can shift to shear-thinning under high solids web content or partial gathering.
This rheological tunability is made use of in layers, where controlled flow and progressing are important for uniform film formation.
Optically, silica sol is clear in the visible spectrum due to the sub-wavelength size of particles, which lessens light scattering.
This openness allows its use in clear finishings, anti-reflective films, and optical adhesives without jeopardizing aesthetic clarity.
When dried out, the resulting silica movie retains transparency while supplying firmness, abrasion resistance, and thermal stability approximately ~ 600 ° C.
4. Industrial and Advanced Applications
4.1 Coatings, Composites, and Ceramics
Silica sol is extensively used in surface area coatings for paper, textiles, metals, and building and construction materials to improve water resistance, scratch resistance, and toughness.
In paper sizing, it boosts printability and dampness obstacle homes; in shop binders, it changes organic resins with eco-friendly not natural choices that decompose easily during casting.
As a precursor for silica glass and ceramics, silica sol makes it possible for low-temperature fabrication of dense, high-purity elements using sol-gel processing, preventing the high melting point of quartz.
It is additionally employed in financial investment casting, where it develops solid, refractory molds with fine surface finish.
4.2 Biomedical, Catalytic, and Energy Applications
In biomedicine, silica sol works as a platform for medication shipment systems, biosensors, and diagnostic imaging, where surface functionalization permits targeted binding and regulated launch.
Mesoporous silica nanoparticles (MSNs), originated from templated silica sol, supply high filling capability and stimuli-responsive release devices.
As a stimulant assistance, silica sol offers a high-surface-area matrix for paralyzing metal nanoparticles (e.g., Pt, Au, Pd), enhancing dispersion and catalytic effectiveness in chemical transformations.
In energy, silica sol is utilized in battery separators to boost thermal security, in fuel cell membranes to boost proton conductivity, and in photovoltaic panel encapsulants to shield against moisture and mechanical tension.
In summary, silica sol stands for a foundational nanomaterial that links molecular chemistry and macroscopic performance.
Its manageable synthesis, tunable surface chemistry, and versatile handling allow transformative applications across markets, from sustainable production to innovative health care and energy systems.
As nanotechnology advances, silica sol remains to act as a design system for creating clever, multifunctional colloidal materials.
