1. The Science and Framework of Alumina Porcelain Materials
1.1 Crystallography and Compositional Versions of Light Weight Aluminum Oxide

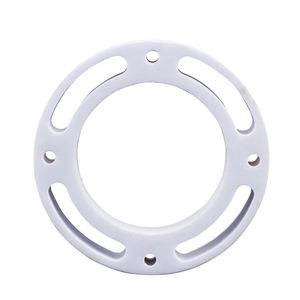

(Alumina Ceramics Rings)
Alumina ceramic rings are manufactured from aluminum oxide (Al two O THREE), a substance renowned for its phenomenal balance of mechanical toughness, thermal security, and electrical insulation.
The most thermodynamically steady and industrially relevant stage of alumina is the alpha (α) phase, which takes shape in a hexagonal close-packed (HCP) framework belonging to the diamond family members.
In this plan, oxygen ions create a dense lattice with aluminum ions occupying two-thirds of the octahedral interstitial websites, resulting in an extremely stable and robust atomic structure.
While pure alumina is theoretically 100% Al Two O SIX, industrial-grade materials commonly have little percentages of additives such as silica (SiO TWO), magnesia (MgO), or yttria (Y ₂ O FOUR) to regulate grain development during sintering and improve densification.
Alumina porcelains are categorized by pureness degrees: 96%, 99%, and 99.8% Al ₂ O six prevail, with higher pureness associating to boosted mechanical buildings, thermal conductivity, and chemical resistance.
The microstructure– especially grain dimension, porosity, and stage circulation– plays a crucial function in figuring out the final performance of alumina rings in solution settings.
1.2 Key Physical and Mechanical Residence
Alumina ceramic rings show a suite of homes that make them crucial popular industrial setups.
They possess high compressive toughness (up to 3000 MPa), flexural stamina (typically 350– 500 MPa), and superb hardness (1500– 2000 HV), allowing resistance to use, abrasion, and contortion under lots.
Their reduced coefficient of thermal expansion (around 7– 8 × 10 ⁻⁶/ K) makes certain dimensional security throughout broad temperature level arrays, lessening thermal stress and anxiety and breaking throughout thermal cycling.
Thermal conductivity arrays from 20 to 30 W/m · K, depending on pureness, permitting moderate heat dissipation– enough for many high-temperature applications without the requirement for active air conditioning.
( Alumina Ceramics Ring)
Electrically, alumina is an exceptional insulator with a quantity resistivity going beyond 10 ¹⁴ Ω · centimeters and a dielectric stamina of around 10– 15 kV/mm, making it perfect for high-voltage insulation parts.
In addition, alumina shows superb resistance to chemical attack from acids, alkalis, and molten metals, although it is susceptible to attack by solid antacid and hydrofluoric acid at raised temperature levels.
2. Manufacturing and Precision Design of Alumina Rings
2.1 Powder Processing and Forming Strategies
The manufacturing of high-performance alumina ceramic rings starts with the selection and prep work of high-purity alumina powder.
Powders are normally manufactured by means of calcination of light weight aluminum hydroxide or via advanced approaches like sol-gel processing to attain fine particle size and narrow dimension distribution.
To develop the ring geometry, numerous forming techniques are used, including:
Uniaxial pressing: where powder is compressed in a die under high pressure to form a “green” ring.
Isostatic pushing: applying uniform pressure from all instructions using a fluid tool, resulting in higher thickness and even more uniform microstructure, especially for facility or big rings.
Extrusion: ideal for lengthy round types that are later cut right into rings, typically utilized for lower-precision applications.
Injection molding: utilized for intricate geometries and tight resistances, where alumina powder is mixed with a polymer binder and injected right into a mold and mildew.
Each method affects the last density, grain alignment, and issue distribution, demanding mindful process choice based on application requirements.
2.2 Sintering and Microstructural Growth
After forming, the environment-friendly rings go through high-temperature sintering, generally in between 1500 ° C and 1700 ° C in air or controlled environments.
During sintering, diffusion mechanisms drive bit coalescence, pore removal, and grain development, resulting in a completely dense ceramic body.
The price of heating, holding time, and cooling account are precisely regulated to prevent breaking, bending, or exaggerated grain growth.
Additives such as MgO are frequently introduced to prevent grain limit flexibility, causing a fine-grained microstructure that boosts mechanical strength and reliability.
Post-sintering, alumina rings may undertake grinding and lapping to achieve tight dimensional resistances ( ± 0.01 mm) and ultra-smooth surface area finishes (Ra < 0.1 µm), important for sealing, bearing, and electrical insulation applications.
3. Functional Performance and Industrial Applications
3.1 Mechanical and Tribological Applications
Alumina ceramic rings are widely used in mechanical systems because of their wear resistance and dimensional security.
Key applications include:
Securing rings in pumps and valves, where they stand up to erosion from rough slurries and harsh liquids in chemical processing and oil & gas markets.
Bearing elements in high-speed or destructive atmospheres where metal bearings would certainly weaken or call for constant lubrication.
Guide rings and bushings in automation equipment, offering low rubbing and lengthy service life without the need for oiling.
Put on rings in compressors and generators, lessening clearance between rotating and fixed parts under high-pressure problems.
Their ability to maintain performance in dry or chemically aggressive environments makes them above many metallic and polymer choices.
3.2 Thermal and Electrical Insulation Functions
In high-temperature and high-voltage systems, alumina rings act as critical insulating components.
They are employed as:
Insulators in burner and heating system elements, where they sustain resistive cables while holding up against temperature levels above 1400 ° C.
Feedthrough insulators in vacuum cleaner and plasma systems, protecting against electric arcing while maintaining hermetic seals.
Spacers and assistance rings in power electronics and switchgear, isolating conductive parts in transformers, circuit breakers, and busbar systems.
Dielectric rings in RF and microwave devices, where their low dielectric loss and high failure strength guarantee signal stability.
The mix of high dielectric strength and thermal security allows alumina rings to operate dependably in atmospheres where organic insulators would certainly deteriorate.
4. Product Advancements and Future Expectation
4.1 Composite and Doped Alumina Equipments
To even more enhance efficiency, scientists and makers are establishing innovative alumina-based composites.
Examples include:
Alumina-zirconia (Al Two O FOUR-ZrO ₂) compounds, which exhibit improved fracture sturdiness through makeover toughening systems.
Alumina-silicon carbide (Al two O ₃-SiC) nanocomposites, where nano-sized SiC particles improve solidity, thermal shock resistance, and creep resistance.
Rare-earth-doped alumina, which can customize grain boundary chemistry to enhance high-temperature stamina and oxidation resistance.
These hybrid materials extend the functional envelope of alumina rings right into even more severe problems, such as high-stress dynamic loading or fast thermal biking.
4.2 Emerging Trends and Technical Integration
The future of alumina ceramic rings hinges on smart assimilation and accuracy production.
Fads consist of:
Additive production (3D printing) of alumina components, allowing complicated inner geometries and personalized ring designs previously unreachable via conventional approaches.
Useful grading, where structure or microstructure varies throughout the ring to optimize performance in various zones (e.g., wear-resistant outer layer with thermally conductive core).
In-situ monitoring via ingrained sensing units in ceramic rings for predictive upkeep in commercial equipment.
Boosted usage in renewable energy systems, such as high-temperature gas cells and focused solar energy plants, where product integrity under thermal and chemical stress and anxiety is critical.
As sectors demand higher performance, longer lifespans, and lowered maintenance, alumina ceramic rings will continue to play a pivotal role in allowing next-generation engineering options.
