1. Material Basics and Crystallographic Feature
1.1 Phase Make-up and Polymorphic Behavior

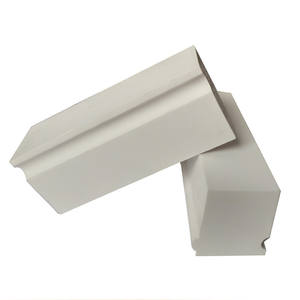

(Alumina Ceramic Blocks)
Alumina (Al Two O THREE), particularly in its α-phase form, is just one of the most commonly utilized technical ceramics because of its superb balance of mechanical toughness, chemical inertness, and thermal stability.
While light weight aluminum oxide exists in a number of metastable phases (γ, δ, θ, κ), α-alumina is the thermodynamically secure crystalline structure at high temperatures, defined by a dense hexagonal close-packed (HCP) arrangement of oxygen ions with light weight aluminum cations inhabiting two-thirds of the octahedral interstitial sites.
This bought structure, known as corundum, confers high lattice power and solid ionic-covalent bonding, resulting in a melting factor of approximately 2054 ° C and resistance to phase change under severe thermal conditions.
The change from transitional aluminas to α-Al ₂ O two commonly takes place over 1100 ° C and is gone along with by considerable quantity shrinkage and loss of area, making stage control vital during sintering.
High-purity α-alumina blocks (> 99.5% Al ₂ O THREE) show exceptional performance in serious atmospheres, while lower-grade compositions (90– 95%) may include additional phases such as mullite or glazed grain limit stages for economical applications.
1.2 Microstructure and Mechanical Integrity
The efficiency of alumina ceramic blocks is exceptionally affected by microstructural functions consisting of grain dimension, porosity, and grain boundary communication.
Fine-grained microstructures (grain dimension < 5 µm) generally offer greater flexural strength (as much as 400 MPa) and improved fracture toughness compared to coarse-grained counterparts, as smaller sized grains hamper crack propagation.
Porosity, even at reduced levels (1– 5%), significantly reduces mechanical toughness and thermal conductivity, demanding full densification with pressure-assisted sintering techniques such as hot pushing or warm isostatic pressing (HIP).
Additives like MgO are typically introduced in trace quantities (≈ 0.1 wt%) to hinder uncommon grain growth during sintering, making sure uniform microstructure and dimensional security.
The resulting ceramic blocks display high hardness (≈ 1800 HV), excellent wear resistance, and low creep prices at raised temperature levels, making them suitable for load-bearing and rough environments.
2. Manufacturing and Processing Techniques

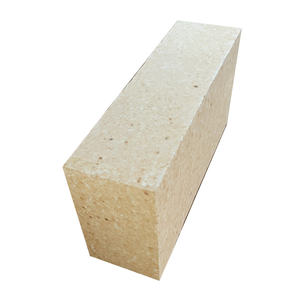

( Alumina Ceramic Blocks)
2.1 Powder Preparation and Shaping Methods
The manufacturing of alumina ceramic blocks begins with high-purity alumina powders originated from calcined bauxite by means of the Bayer process or manufactured via precipitation or sol-gel routes for higher purity.
Powders are milled to attain narrow particle dimension circulation, boosting packaging density and sinterability.
Shaping right into near-net geometries is accomplished with numerous creating techniques: uniaxial pressing for simple blocks, isostatic pressing for consistent density in complicated shapes, extrusion for long sections, and slip casting for complex or large parts.
Each approach affects eco-friendly body thickness and homogeneity, which directly impact last buildings after sintering.
For high-performance applications, advanced forming such as tape spreading or gel-casting might be utilized to accomplish exceptional dimensional control and microstructural harmony.
2.2 Sintering and Post-Processing
Sintering in air at temperatures between 1600 ° C and 1750 ° C enables diffusion-driven densification, where bit necks expand and pores diminish, bring about a totally thick ceramic body.
Environment control and precise thermal accounts are important to protect against bloating, bending, or differential contraction.
Post-sintering procedures consist of ruby grinding, lapping, and brightening to achieve limited resistances and smooth surface area coatings called for in sealing, sliding, or optical applications.
Laser reducing and waterjet machining allow precise modification of block geometry without causing thermal stress.
Surface area therapies such as alumina layer or plasma splashing can even more boost wear or deterioration resistance in customized solution conditions.
3. Useful Features and Efficiency Metrics
3.1 Thermal and Electric Actions
Alumina ceramic blocks display moderate thermal conductivity (20– 35 W/(m · K)), substantially higher than polymers and glasses, making it possible for effective warm dissipation in digital and thermal administration systems.
They preserve structural honesty approximately 1600 ° C in oxidizing atmospheres, with low thermal expansion (≈ 8 ppm/K), adding to outstanding thermal shock resistance when appropriately designed.
Their high electrical resistivity (> 10 ¹⁴ Ω · centimeters) and dielectric toughness (> 15 kV/mm) make them ideal electrical insulators in high-voltage settings, consisting of power transmission, switchgear, and vacuum systems.
Dielectric consistent (εᵣ ≈ 9– 10) continues to be stable over a large frequency variety, sustaining usage in RF and microwave applications.
These residential or commercial properties allow alumina obstructs to work reliably in atmospheres where organic materials would break down or fail.
3.2 Chemical and Ecological Durability
Among the most useful attributes of alumina blocks is their phenomenal resistance to chemical assault.
They are extremely inert to acids (other than hydrofluoric and hot phosphoric acids), alkalis (with some solubility in solid caustics at elevated temperatures), and molten salts, making them suitable for chemical handling, semiconductor fabrication, and contamination control tools.
Their non-wetting behavior with lots of liquified metals and slags enables use in crucibles, thermocouple sheaths, and heater cellular linings.
In addition, alumina is non-toxic, biocompatible, and radiation-resistant, increasing its utility into medical implants, nuclear securing, and aerospace components.
Marginal outgassing in vacuum atmospheres additionally qualifies it for ultra-high vacuum (UHV) systems in research study and semiconductor production.
4. Industrial Applications and Technological Integration
4.1 Structural and Wear-Resistant Elements
Alumina ceramic blocks act as crucial wear elements in industries varying from extracting to paper manufacturing.
They are used as linings in chutes, receptacles, and cyclones to withstand abrasion from slurries, powders, and granular materials, dramatically expanding life span contrasted to steel.
In mechanical seals and bearings, alumina obstructs give reduced rubbing, high solidity, and deterioration resistance, minimizing maintenance and downtime.
Custom-shaped blocks are incorporated right into cutting devices, dies, and nozzles where dimensional stability and side retention are paramount.
Their light-weight nature (density ≈ 3.9 g/cm ³) also contributes to power financial savings in relocating parts.
4.2 Advanced Engineering and Arising Makes Use Of
Past conventional functions, alumina blocks are increasingly used in advanced technical systems.
In electronics, they operate as shielding substrates, warm sinks, and laser cavity parts as a result of their thermal and dielectric homes.
In power systems, they serve as strong oxide fuel cell (SOFC) elements, battery separators, and combination activator plasma-facing products.
Additive production of alumina using binder jetting or stereolithography is emerging, enabling intricate geometries formerly unattainable with conventional creating.
Hybrid frameworks combining alumina with steels or polymers with brazing or co-firing are being developed for multifunctional systems in aerospace and protection.
As material scientific research advancements, alumina ceramic blocks remain to develop from easy architectural components right into energetic components in high-performance, lasting design options.
In recap, alumina ceramic blocks represent a fundamental class of sophisticated ceramics, integrating robust mechanical performance with exceptional chemical and thermal security.
Their versatility across industrial, electronic, and scientific domains emphasizes their long-lasting worth in modern-day design and technology growth.
